MAX2038CCQ+

Overview

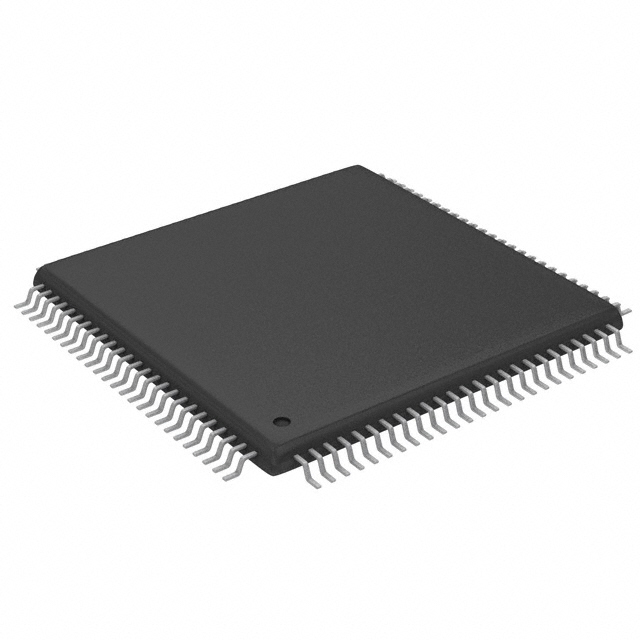

The MAX2038CCQ+ is a variable gain amplifier manufactured by Analog Devices Inc./Maxim Integrated. It is designed for medical ultrasound imaging and sonar applications. The device is housed in a 100-TQFP-EP package with dimensions of 14x14 mm. It features surface mount mounting type and operates as a specialized linear amplifier.

Feature Summary

• Designed specifically for medical ultrasound imaging systems
• Suitable for sonar signal processing applications
• Provides variable gain amplification capabilities

Applications

• Medical Ultrasound Imaging
• Sonar Systems

Procurement Notes

Verify component status carefully as the MAX2038 series may be obsolete or discontinued. Confirm availability through authorized distributors only. Ensure the specific suffix matches required packaging and temperature grades. Check for valid replacement options if current stock is unavailable.

Selection Notes

Select this component when variable gain amplification is required for acoustic signal chains. Consider the 100-TQFP-EP package for thermal management and board space constraints. Verify compatibility with existing ultrasound or sonar system architectures before integration.

Part Context

This part belongs to the MAX2037/MAX2038 family of variable gain amplifiers. These devices are engineered for high-performance analog front-end applications in diagnostic imaging and underwater detection systems, offering precise gain control characteristics.
