MAX2102CWI+

Overview

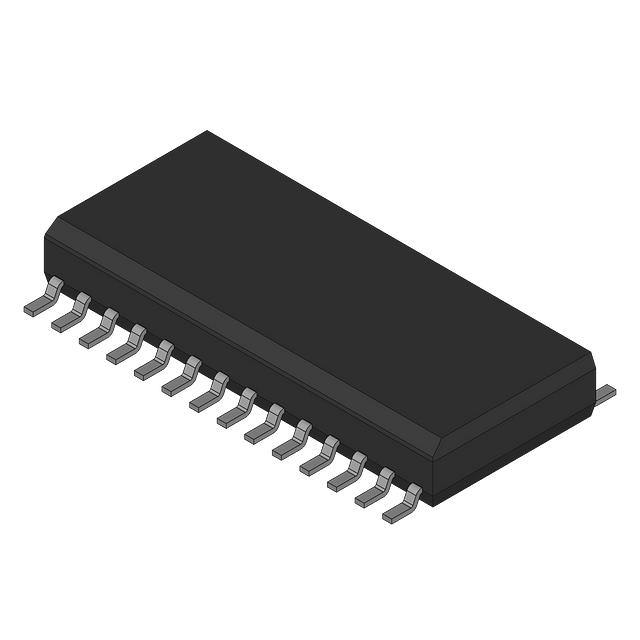

The MAX2102CWI+ is a direct-conversion tuner integrated circuit manufactured by Analog Devices Inc./Maxim Integrated. It operates within a frequency range of 950MHz to 2.15GHz and utilizes a 28-SOIC package. The device is designed for low-cost applications in digital direct-broadcast satellite television set-top boxes.

Feature Summary

• Direct-conversion architecture for signal tuning
• Optimized for digital direct-broadcast satellite applications

Applications

• Digital direct-broadcast satellite (DBS) television set-top box units

Procurement Notes

Verify the manufacturer designation, as sources list both Maxim Integrated and Analog Devices Inc. Confirm the specific suffix (+) indicates RoHS compliance. Check current availability status, as some distributors indicate discontinued or limited stock conditions. Ensure the 28-SOIC package matches your PCB footprint requirements before ordering.

Selection Notes

Select this component specifically for DBS tuner applications requiring direct-conversion topology. Verify that the 950MHz to 2.15GHz operating range aligns with your satellite band requirements. Consider the 28-SOIC package constraints for board layout. Compare against other Maxim tuner ICs if different frequency ranges or integration levels are needed.

Part Context

This part belongs to the MAX210x series of direct-conversion tuners. It shares architectural similarities with the MAX2105 but is distinct in its specific tuning parameters and target application focus for satellite reception systems.
