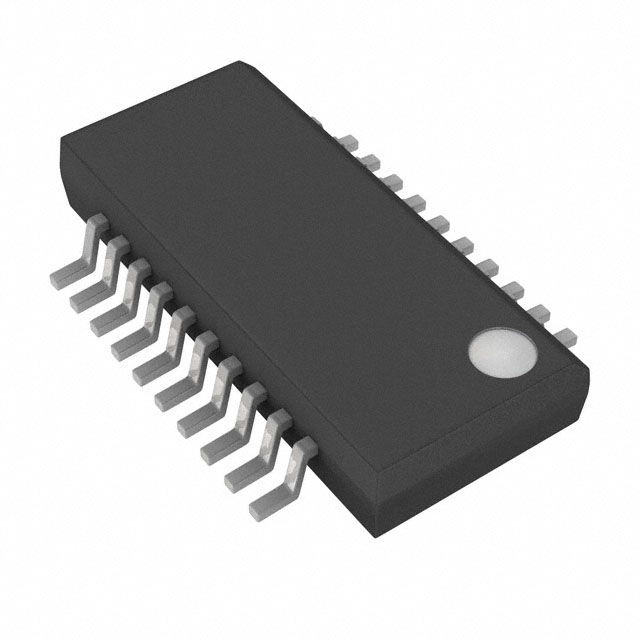

MAX2406EEP+

Overview

The MAX2406EEP+ is a low-cost RF up/downconverter integrated circuit manufactured by Analog Devices Inc. (Maxim Integrated). It features a Low Noise Amplifier (LNA) and Power Amplifier (PA) driver, designed for wireless communication applications. The device operates within a supply voltage range of 2.7 V to 5.5 V and supports dual supply configurations at 3.3 V and 5 V. It is housed in a 20-pin QSOP package and functions as an RF misc IC with a combined receiver noise figure of 3.2 dB.

Feature Summary

• Integrates LNA and PA driver for efficient signal conversion
• Supports multiple frequency bands including DCS1800/PCS1900
• Designed for DECT, PHS/PACS, and PWT1900 applications

Applications

• DCS1800/PCS1900 systems
• DECT devices
• PHS/PACS networks
• PWT1900 applications

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm the specific suffix matches the required package type. Check current lifecycle status as some variants may be discontinued. Ensure compatibility with existing design specifications before integration.

Selection Notes

Select this component for applications requiring integrated up/downconversion capabilities. Consider the 3.2 dB noise figure for sensitivity requirements. Verify power supply constraints against the 2.7 V to 5.5 V operating range. Evaluate thermal dissipation needs given the 909 mW power dissipation rating.

Part Context

This part belongs to the Maxim Integrated family of RF mixed-signal components. It is categorized under RF Misc ICs and Wireless & RF Integrated Circuits. The device serves as a specialized interface for converting radio frequency signals in mobile and cordless phone technologies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Analog Devices resources for cross-reference data.
