MAX25614AATI/VY+

LED Driver IC Overview

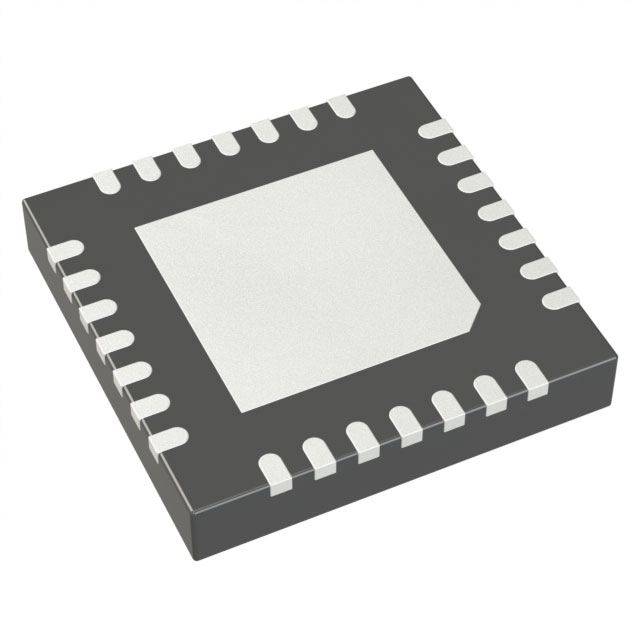

The MAX25614AATI/VY+ is an automotive-grade LED driver IC designed for infrared LED and VCSEL applications in driver monitoring systems. It operates from a 4.5V to 36V input supply, delivering up to 10A output current with a maximum output voltage of 35V. The device utilizes a boost topology and supports I²C dimming control. Switching frequencies are selectable at 420kHz, 1MHz, 1.6MHz, or 2.1MHz. It features an internal switch and is housed in a 28-TQFN (5x5) package.

LED Driver IC Feature Summary

• Automotive qualification compliant with AEC-Q100 standards
• Integrated high-current boost regulator for IR LEDs and VCSELs
• Digital control interface via I²C for precise dimming adjustment

LED Driver IC Applications

• Driver monitoring system (DMS) illumination
• Infrared LED driving for proximity sensing
• VCSEL driver circuits in automotive safety modules

LED Driver IC Procurement Notes

Verify the specific suffix 'AATI/VY+' against official Analog Devices documentation to confirm pinout and thermal pad configuration. Confirm RoHS compliance status and lead-free specifications directly with the manufacturer or authorized distributors. Ensure the component meets AEC-Q100 grade requirements for your specific automotive application environment.

LED Driver IC Selection Notes

Select this component when designing automotive driver monitoring systems requiring high-current IR LED or VCSEL drive capabilities. The boost topology is suitable for applications where the input voltage may drop below the required LED forward voltage. The I²C interface allows for dynamic brightness control and diagnostic feedback integration within the vehicle's network.

LED Driver IC Part Context

This part belongs to the MAX25614 series of high-current LED drivers optimized for automotive safety and monitoring applications. It is distinct from buck or SEPIC variants in the same family due to its specific boost-only architecture and I²C digital control interface, tailored for compact driver monitoring unit designs.

LED Driver IC Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Analog Devices technical support for direct replacements or pin-compatible alternatives.
