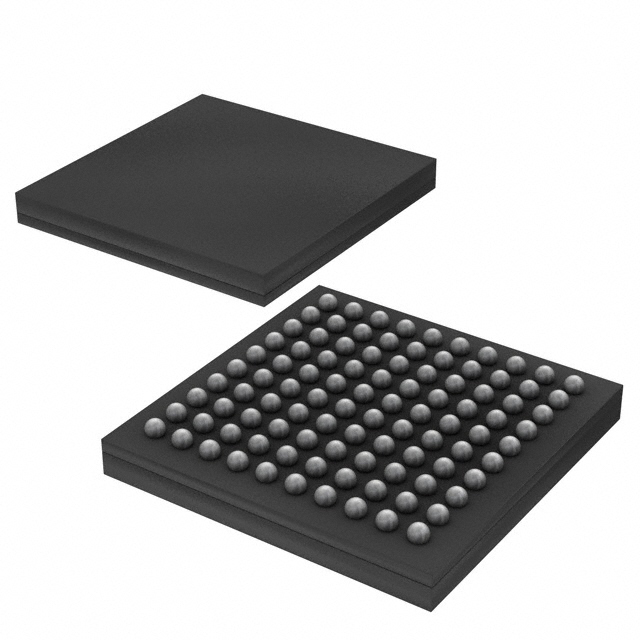

MAX32631IWG+T

Microcontrollers Overview

The MAX32631IWG+T is an ARM Cortex-M4F microcontroller featuring a floating-point unit, optimized for wearable medical and fitness applications. It integrates 2MB Flash memory, 512KB SRAM, and an 8KB instruction cache. The device operates with a 1.2V core supply and supports 1.8V to 3.3V I/O voltages. Key peripherals include a full-speed USB 2.0 engine, three SPI masters, four UARTs, three I2C masters, and a 10-bit delta-sigma ADC. It incorporates a Trust Protection Unit (TPU) with hardware AES encryption, modular arithmetic accelerator, and secure boot loader.

Microcontrollers Feature Summary

• Integrates a Trust Protection Unit (TPU) providing hardware AES encryption, modular arithmetic acceleration for ECDSA, and a secure boot loader.
• Features ultra-low power management with multiple configurable modes, including data retention sleep and low-power standby states.
• Includes a high-efficiency signal processing architecture with dynamic clock gating and firmware-controlled power gating.
• Provides extensive connectivity via full-speed USB 2.0, multiple serial interfaces, and up to 66 general-purpose I/O pins.

Microcontrollers Applications

• Sports Watches
• Fitness Monitors
• Wearable Medical Patches
• Portable Medical Devices
• Sensor Hubs

Microcontrollers Procurement Notes

Verify the component matches the exact package code W1004D4+1 and RoHS compliance status indicated by the suffix. Confirm that the specific revision level aligns with your design requirements. Ensure proper handling of the 100-ball WLP package during assembly to prevent damage. Cross-reference the datasheet version to validate all electrical characteristics against your system specifications.

Microcontrollers Selection Notes

Select this model when hardware security features such as the Trust Protection Unit are required for intellectual property protection. Choose this variant over the MAX32630 if secure boot and cryptographic acceleration are necessary. Consider the 100-ball WLP package constraints for board space limitations. Evaluate the power consumption profiles across different operating modes to ensure battery life targets are met.

Microcontrollers Part Context

This component belongs to the MAX32630/MAX32631 family of ultra-low power microcontrollers designed for wearable devices. The MAX32631 serves as the secure counterpart to the standard MAX32630, adding advanced cryptographic capabilities. Both share the same ARM Cortex-M4F core and peripheral set, differing primarily in the inclusion of the Trust Protection Unit in the MAX32631.

Microcontrollers Replacement Considerations

The MAX32630 is the non-secure equivalent within the same family. Verify if the Trust Protection Unit features are mandatory for your application before substituting. Ensure pin compatibility and software library support remain consistent between the two variants.

Microcontrollers FAQ

What distinguishes the MAX32631 from the MAX32630?

The MAX32631 includes a Trust Protection Unit (TPU) with hardware AES encryption, a modular arithmetic accelerator for ECDSA, and a secure boot loader, which are absent in the MAX32630.

How does the device manage power consumption?

It utilizes a Peripheral Management Unit (PMU) with up to six channels, dynamic clock gating, and firmware-controlled power gating to optimize power usage across various operational modes.
