Product Detailed Parameters
- Description：IC TRANSCEIVER 1/1 10TDFN
- Mfr：Analog Devices Inc./Maxim Integrated
- Package：Tray
- Series：-
- Type：Transceiver
- Protocol：CANbus
- Number of Drivers/Receivers：1月1日
- Duplex：-
- Data Rate：5Mbps
- Voltage - Supply：4.5V ~ 5.5V
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount

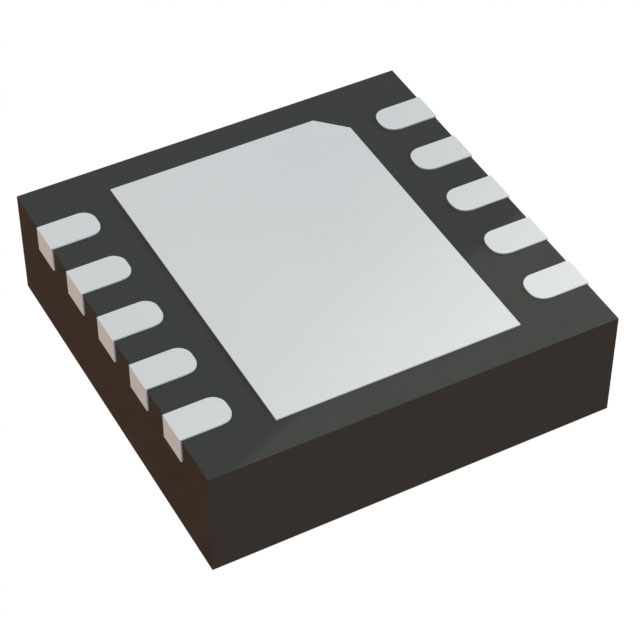

- Package / Case：10-WFDFN Exposed Pad
- Supplier Device Package：10-TDFN (3x4)
- Receiver Hysteresis：100 mV
- Grade：-
- Qualification：-
Download product information
Overview
The MAX33015EATB+ is a +5V, 5Mbps CAN transceiver in a 10-pin TDFN-EP package. It features ±65V fault protection on CANH/CANL and ±45kV ESD HBM protection. The device supports a logic supply (VL) range of 1.62V to VDD for low-voltage controller interfacing. Key modes include Silent Mode (S), Loopback (LPBK), and Fault Detection/Reporting via the FAULT pin. Operating temperature is -40°C to +125°C.
Feature Summary
- Integrated ±65V fault tolerance and ±45kV ESD protection for robust industrial operation
- Fault detection and reporting mechanism identifies overcurrent, overvoltage, and transmission failures
- Silent mode disables transmitter while maintaining receiver monitoring capabilities
- Loopback mode enables local self-diagnostics without disturbing the bus
Applications
- Industrial Automation
- Building Automation
- Heavy Equipment/Machinery
Procurement Notes
Verify the specific ordering suffix ATB+ corresponds to the 10-pin TDFN-EP package with Silent Mode and Loopback functionality. Confirm RoHS compliance status indicated by the plus sign. Ensure the design accommodates the required logic supply voltage range and thermal dissipation characteristics for the target application environment.
Selection Notes
Select this component when low-voltage logic compatibility down to 1.62V is required alongside standard +5V bus operation. The inclusion of Silent Mode and Loopback features makes it suitable for systems requiring diagnostic capabilities or transmitter disablement. Verify that the 10-pin TDFN package footprint aligns with the PCB layout constraints.
Part Context
This part belongs to the MAX3301xE family of high-speed CAN transceivers designed for harsh industrial environments. It shares core fault protection and communication specifications with siblings like the MAX33014E, but distinguishes itself through the integration of Silent Mode and Loopback capabilities within the compact TDFN package.
Replacement Considerations
The MAX33014EATB+ is a functional substitute within the same family, differing primarily by lacking the Silent Mode feature while retaining Loopback and VL support.
