MAX40100ANT+

Instrumentation, Op Amps, Buffer Amps Overview

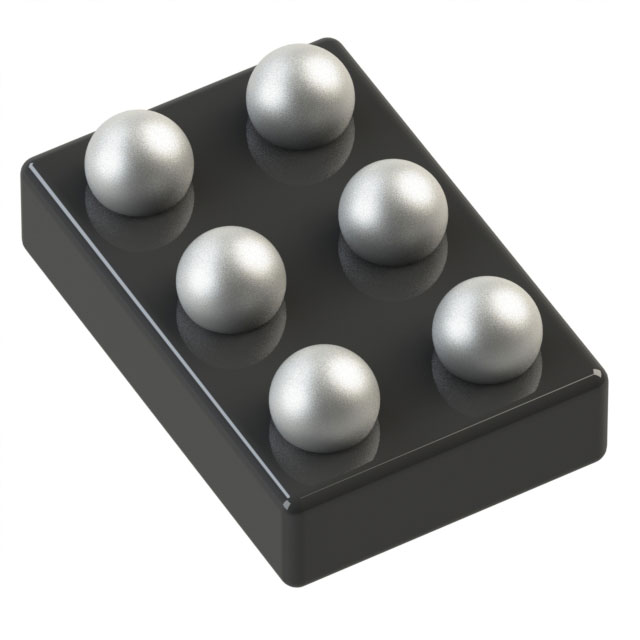

The MAX40100ANT+ is a zero-drift operational amplifier manufactured by Analog Devices Inc./Maxim Integrated. It features a single channel with rail-to-rail input and output capabilities, housed in a compact 6-WLP package measuring 1.08x0.73 mm. Key electrical specifications include a gain-bandwidth product of 1.5 MHz, a slew rate of 700 mV/us, and an input offset voltage of 10 uV. The device operates on a supply voltage range of 1.6 V to 6 V, drawing a typical operating current of 66 uA per channel while delivering up to 50 mA output current. It offers a common-mode rejection ratio of 135 dB and an input voltage noise density of 42 nV/sqrt Hz, functioning reliably within a temperature range of -40°C to +125°C.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Zero-drift architecture utilizing chopper stabilization to minimize offset voltage drift over time and temperature.
• Rail-to-rail input and output stages enabling full signal swing capability across the entire supply voltage range.
• Ultra-low quiescent current consumption optimized for battery-powered and energy-efficient applications.
• Compact thin wafer-level packaging designed for space-constrained printed circuit board layouts.

Instrumentation, Op Amps, Buffer Amps Applications

• Precision sensor signal conditioning in industrial measurement systems
• Portable medical instrumentation requiring high accuracy and low power
• Battery-operated data acquisition systems
• High-impedance transducer interfaces

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific suffix 'ANT+' against the manufacturer's official datasheet to confirm pinout compatibility and functional equivalence. Ensure the component meets RoHS compliance requirements for your target market. Cross-reference the ordering part number with authorized distributors to validate authenticity and traceability before procurement.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when design requirements demand minimal offset voltage drift without external trimming. Consider the 1.5 MHz bandwidth and 700 mV/us slew rate for moderate-speed precision applications. Evaluate the 6-WLP package dimensions against available PCB real estate constraints. Confirm that the 1.6 V minimum supply voltage aligns with the system's power budget.

Instrumentation, Op Amps, Buffer Amps Part Context

This device belongs to the MAX40100 series of high-efficiency, zero-drift operational amplifiers from Maxim Integrated. The series is characterized by its combination of precision analog performance and ultra-low power consumption. It serves as a specialized solution for applications where traditional op-amps would require complex calibration or consume excessive power.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Consult the manufacturer's official replacement guide for verified cross-references. Generic industry substitutes may not match the zero-drift characteristics or WLP footprint. Verify pinout compatibility and thermal performance before implementing any alternative components.
