MAX40662ATE/VY+T

Overview

The MAX40662ATE/VY+T is a four-channel transimpedance amplifier (TIA) designed for optical ranging receivers in LiDAR applications. It features low noise, high gain, and fast overload recovery. The device integrates an internal multiplexer to route four input stages to a pair of differential outputs. Key specifications include a 440MHz typical bandwidth, 2.1pA/√Hz input-referred noise density, and pin-selectable transimpedance values of 25kΩ or 50kΩ. It operates on a single 3.3V supply and supports internal current clamping up to 2A for 10ns pulses.

Feature Summary

• Integrates four independent transimpedance amplifier channels with an internal multiplexer for efficient signal routing.
• Provides optimized performance for capacitive inputs ranging from 0.5pF to 5pF.
• Features internal current input clamping capable of handling high-amplitude pulses without damage.
• Includes an offset input terminal to eliminate DC bias currents from photodiodes.

Applications

• Optical time-of-flight distance measurement systems
• LiDAR receiver front-ends
• Automotive driver assistance systems

Procurement Notes

Verify the specific suffix 'ATE/VY+T' against official Analog Devices documentation to confirm package type, temperature grade, and reel specifications. Ensure compatibility with AEC-Q100 automotive standards if required for the target application. Cross-reference the part number with authorized distributors to confirm availability and authenticity.

Selection Notes

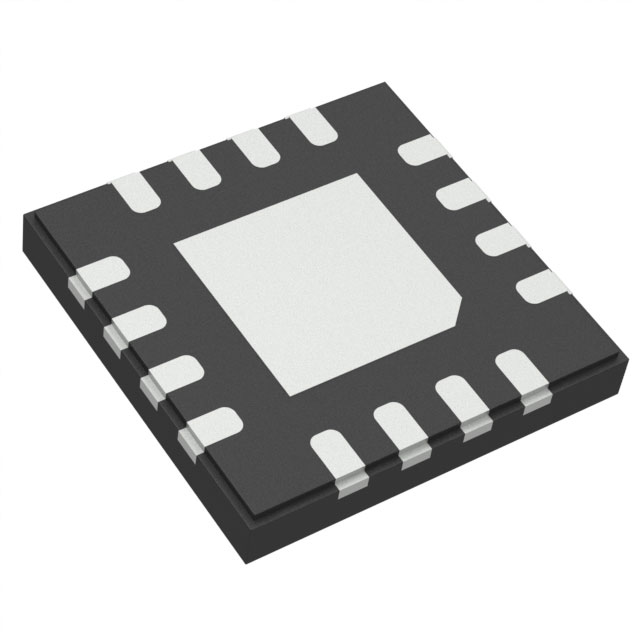

Select this component for applications requiring high-speed signal processing with minimal noise contribution. The pin-selectable gain options allow flexibility in system design. Consider the 16-pin TQFN package dimensions for PCB layout constraints. Verify that the input capacitance range aligns with the selected photodetector array.

Part Context

This part belongs to the Maxim Integrated family of specialized analog interfaces for sensing applications. It is engineered specifically for high-performance optical detection where speed and noise are critical factors. The device represents a solution for compact, high-density sensor arrays in modern autonomous driving technologies.

Replacement Considerations

Consult official Analog Devices substitution guides for verified alternatives. Generic TIAs may not match the integrated multiplexer or specific clamping characteristics. Ensure any replacement maintains the 3.3V operation and automotive qualification requirements.
