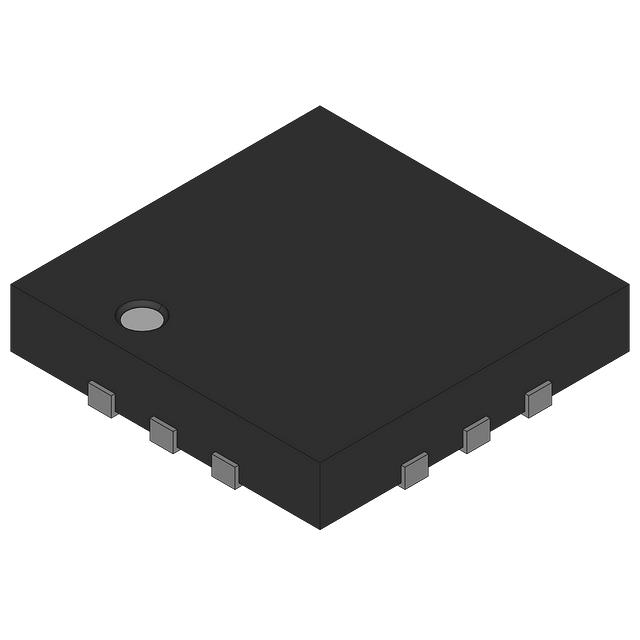

MAX4695EGC+TG069 is listed in the Analog Switches, Multiplexers, Demultiplexers range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is LOW VOLTAGE, 60 OHM DUAL SPDT AN. Review the specifications below when checking this part for your BOM.
Analog Switches, Multiplexers, Demultiplexers specifications for MAX4695EGC+TG069
- Description：LOW VOLTAGE, 60 OHM DUAL SPDT AN
- Series：*
- Mfr：Analog Devices Inc./Maxim Integrated
- Package：Bulk
- Switch Circuit：-
- Multiplexer/Demultiplexer Circuit：-
- On-State Resistance (Max)：-
- Channel-to-Channel Matching (ΔRon)：-
- Voltage - Supply, Single (V+)：-
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：-
- -3db Bandwidth：-
- Charge Injection：-
- Channel Capacitance (CS(off), CD(off))：-
- Current - Leakage (IS(off)) (Max)：-
- Crosstalk：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Number of Circuits：-
Analog Switches, Multiplexers, Demultiplexers datasheet and documents for MAX4695EGC+TG069
Analog Switches, Multiplexers, Demultiplexers Overview
The MAX4695EGC+ is a dual, low-voltage, single-pole double-throw (SPDT) analog switch manufactured by Analog Devices Inc. under the Maxim Integrated brand. It operates on a single supply voltage ranging from 1.8 V to 5.5 V. The device features a maximum on-resistance of 60 Ohms and supports a DC switch current of 20 mA. Electrical performance includes a maximum turn-on time of 30 ns and a maximum turn-off time of 18 ns. It is housed in a 12-QFN package with dimensions of 3x3 mm and is rated for an operating temperature range from -40°C to +85°C.
Analog Switches, Multiplexers, Demultiplexers Feature Summary
- Dual SPDT configuration providing two independent signal paths within a compact footprint.
- Low-voltage operation compatible with modern portable and battery-powered systems.
- High-speed switching capability suitable for data acquisition and signal routing applications.
Analog Switches, Multiplexers, Demultiplexers Applications
- Portable instrumentation signal conditioning
- Battery-powered measurement devices
- Data acquisition systems
Analog Switches, Multiplexers, Demultiplexers Procurement Notes
Verify the specific suffix 'TG069' against official manufacturer documentation, as standard datasheets typically list 'MAX4695EGC+'. Confirm that this suffix denotes a valid tape-and-reel packaging variant or specific manufacturing lot code rather than a functional deviation. Ensure compliance with RoHS directives and check for any obsolescence notices associated with the EGC+ package style.
Analog Switches, Multiplexers, Demultiplexers Selection Notes
Select this component when a dual-channel SPDT switch is required for low-voltage environments. Compare the 60 Ohm on-resistance and 30 ns switching speed against system requirements. Consider the 12-QFN package size for space-constrained designs. Verify power supply constraints align with the 1.8 V to 5.5 V operational range.
Analog Switches, Multiplexers, Demultiplexers Part Context
The MAX4695 belongs to the Maxim Integrated family of low-voltage analog switches. It is part of a series designed for portable electronics, offering small package options like the UMAX and QFN. The EGC+ designation specifically refers to the 12-lead Quad Flat No-Lead (QFN) package variant, distinguishing it from other pinouts in the same electrical family.
Analog Switches, Multiplexers, Demultiplexers Replacement Considerations
Direct substitutes include the MAX4695EUB+ (UMAX-10 package) and MAX4695EGC+ (standard QFN tube). Check for availability of the tape-and-reel version if high-volume automated assembly is required. Verify pin compatibility before replacing.
