MAX4696EBT-T

Analog Switches, Multiplexers, Demultiplexers Overview

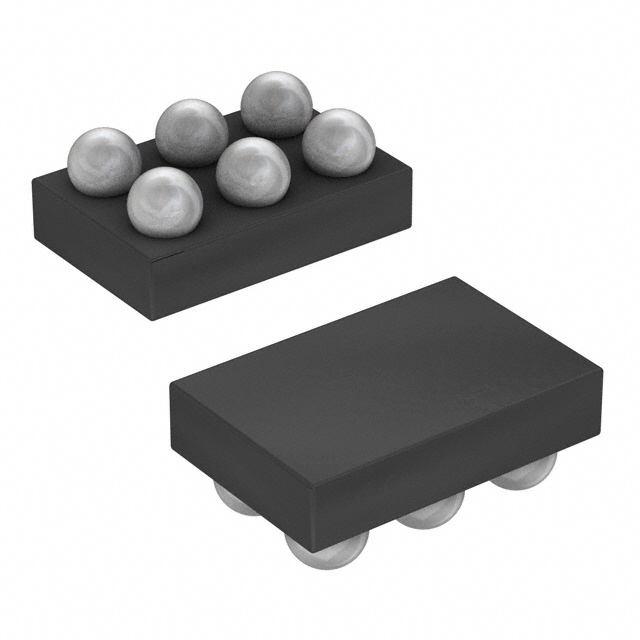

The MAX4696EBT-T is a single-pole/single-throw (SPST) analog switch from the MAX4696/MAX4697/MAX4698 family, manufactured by Analog Devices Inc./Maxim Integrated. It operates on a single supply voltage ranging from +2.0V to +5.5V. The device features a maximum on-resistance of 35Ω at +3V and 20Ω at +5V. Switching speeds include a maximum turn-on time of 80ns and a maximum turn-off time of 25ns. It utilizes a 6-bump UCSP package with dimensions of 1.50mm x 1.02mm. The component supports an operating temperature range from -40°C to +85°C.

Analog Switches, Multiplexers, Demultiplexers Feature Summary

• Rail-to-rail signal handling capability across the entire supply voltage range
• Low leakage currents ensuring minimal signal loss when in the off state
• High off-isolation and low crosstalk for effective signal routing
• 1.8V CMOS logic compatibility for direct interface with digital control systems

Analog Switches, Multiplexers, Demultiplexers Applications

• MP3 Players
• Battery-Operated Equipment
• Audio and Video Signal Routing
• Communications Circuits
• Cellular Phones

Analog Switches, Multiplexers, Demultiplexers Procurement Notes

Verify the specific ordering suffix EBTT against official manufacturer documentation to confirm the exact tape-and-reel packaging configuration and temperature grade. Ensure that the UCSP package footprint matches the target PCB design guidelines provided in the application notes. Cross-reference the part number with authorized distributors to confirm current availability status and authenticity.

Analog Switches, Multiplexers, Demultiplexers Selection Notes

Select this component for applications requiring low-voltage operation and compact board space due to the UCSP package. Consider the MAX4697 variant if a normally closed configuration is required instead of the normally open MAX4696. Evaluate the on-resistance specifications relative to the specific supply voltage used in the circuit design to ensure signal integrity requirements are met.

Analog Switches, Multiplexers, Demultiplexers Part Context

This part belongs to the MAX4696/MAX4697/MAX4698 series of low on-resistance analog switches. The MAX4696 represents the SPST Normally Open variant within this family. These devices share common electrical characteristics such as fast switching speeds and rail-to-rail signal handling capabilities while differing primarily in their default switch states and pin configurations.

Analog Switches, Multiplexers, Demultiplexers Replacement Considerations

MAX4697EBT-T

Analog Switches, Multiplexers, Demultiplexers FAQ

What is the difference between the MAX4696 and MAX4697?

The MAX4696 is a Normally Open (NO) SPST switch, whereas the MAX4697 is a Normally Closed (NC) SPST switch. Both share identical electrical specifications and package types.

Is the MAX4696EBT-T compatible with 1.8V logic levels?

Yes, when powered from a +2.7V to +3.3V supply, the digital logic inputs are compatible with 1.8V CMOS logic levels.

What is the maximum power dissipation for the UCSP package?

The continuous power dissipation is rated at 808mW at an ambient temperature of +70°C, with a derating factor of 10.1mW/°C above +70°C.
