MAX4697EBT-T

Analog Switches, Multiplexers, Demultiplexers Overview

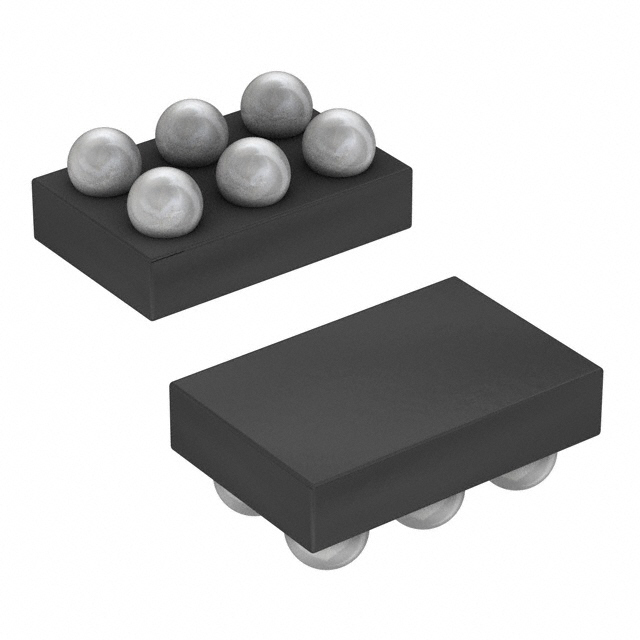

The MAX4697EBT-T is a single-pole/single-throw (SPST) analog switch from the MAX4696/MAX4697/MAX4698 family, manufactured by Analog Devices Inc./Maxim Integrated. It operates on a single supply voltage ranging from +2.0V to +5.5V and features a normally closed (NC) configuration. The device utilizes a UCSP™ package with dimensions of 1.50mm x 1.02mm. Electrical specifications include an on-resistance (RON) of 35Ω maximum at +3V supply and 20Ω maximum at +5V supply. Switching speeds are characterized by a turn-on time (tON) of 80ns maximum and a turn-off time (tOFF) of 25ns maximum.

Analog Switches, Multiplexers, Demultiplexers Feature Summary

• UCSP™ chip-scale packaging for minimal board area
• Low on-resistance across wide supply voltages
• Rail-to-rail signal handling capability
• Fast switching speeds with low charge injection

Analog Switches, Multiplexers, Demultiplexers Applications

• MP3 Players
• Battery-Operated Equipment
• Audio and Video Signal Routing
• Communications Circuits
• Cellular Phones

Analog Switches, Multiplexers, Demultiplexers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm the specific ordering suffix matches the required temperature range and package variant. Request original datasheets and material compliance documentation prior to purchase to ensure alignment with project specifications.

Analog Switches, Multiplexers, Demultiplexers Selection Notes

Select this part when a normally closed SPST configuration is required in space-constrained designs. Ensure the application logic levels match the 1.8V CMOS compatibility at lower supply voltages or TTL/CMOS compatibility at higher voltages. Verify that the 35Ω on-resistance meets the signal integrity requirements for the specific load conditions.

Analog Switches, Multiplexers, Demultiplexers Part Context

This component belongs to the MAX469x series of low-voltage analog switches. It shares the same physical footprint and general electrical characteristics as the MAX4696 (normally open) and MAX4698 (SPDT). The primary distinction lies in the internal contact state and terminal availability, defining its specific role in circuit topology.

Analog Switches, Multiplexers, Demultiplexers Replacement Considerations

MAX4696EBT-T: Functionally similar but configured as Normally Open (NO) instead of Normally Closed (NC). Requires logic inversion for equivalent switching behavior. MAX4698EBT-T: Offers SPDT configuration with break-before-make functionality. Pinout differs due to the additional NC terminal.
