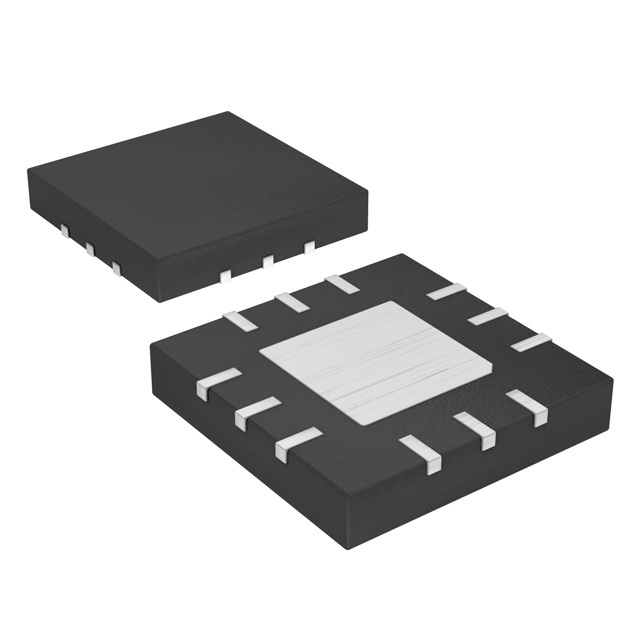

MAX4704EGC+T

$4.52

Description：IC SWITCH SP4T X 1 60OHM 12QFN
Series：-

SKU:10c4e22581cb Category: Analog Switches, Multiplexers, Demultiplexers Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MAX4704EGC+T is listed in the Analog Switches, Multiplexers, Demultiplexers range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC SWITCH SP4T X 1 60OHM 12QFN. Review the specifications below when checking this part for your BOM.

Analog Switches, Multiplexers, Demultiplexers specifications for MAX4704EGC+T

Description：IC SWITCH SP4T X 1 60OHM 12QFN
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Circuit：SP4T
Multiplexer/Demultiplexer Circuit：4:01
On-State Resistance (Max)：60Ohm
Channel-to-Channel Matching (ΔRon)：1Ohm
Voltage - Supply, Single (V+)：1.8V ~ 5.5V
Voltage - Supply, Dual (V±)：-
Switch Time (Ton, Toff) (Max)：60ns, 20ns
-3db Bandwidth：200MHz
Charge Injection：2pC
Channel Capacitance (CS(off), CD(off))：7pF
Current - Leakage (IS(off)) (Max)：100pA
Crosstalk：-90dB @ 1MHz
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：12-VFQFN Exposed Pad
Supplier Device Package：12-QFN (3x3)
Number of Circuits：1

Analog Switches, Multiplexers, Demultiplexers datasheet and documents for MAX4704EGC+T

MAX4704EGC+T

Analog Switches, Multiplexers, Demultiplexers Overview

The MAX4704EGC+T is a low-voltage, single-supply analog multiplexer featuring four normally-open channels. It operates from +1.8V to +5.5V and provides rail-to-rail signal handling with a maximum on-resistance of 60Ω at +2.7V supply. The device offers a -3dB bandwidth exceeding 200MHz, low crosstalk of -90dB at 1MHz, and high off-isolation of -85dB at 1MHz. It utilizes break-before-make switching with turn-on and turn-off times of 60ns and 20ns respectively. Packaged in a space-saving 12-pin QFN (3mm x 3mm) format, it supports -40°C to +85°C operation.

Analog Switches, Multiplexers, Demultiplexers Feature Summary

Break-before-make switching action minimizes signal glitches during channel transitions.
Rail-to-rail analog signal handling allows full voltage range utilization across the supply.
Low charge injection and total harmonic distortion ensure high-fidelity signal integrity.
+1.8V CMOS logic compatibility simplifies interface with low-voltage digital controllers.

Analog Switches, Multiplexers, Demultiplexers Applications

Audio and video signal routing
Battery-operated equipment
Relay replacement
Low-voltage data-acquisition systems

Analog Switches, Multiplexers, Demultiplexers Procurement Notes

Verify the specific ordering suffix against official documentation to confirm package type and tape-and-reel configuration. Confirm that the component meets current environmental compliance standards required for the target assembly process. Cross-reference the manufacturer's latest datasheet revision to ensure all electrical characteristics align with design specifications before finalizing procurement orders.

Analog Switches, Multiplexers, Demultiplexers Selection Notes

Select this component when designing circuits requiring low-voltage operation and minimal board space. Ensure the system power supply remains within the +1.8V to +5.5V range to maintain guaranteed on-resistance and leakage performance. Verify that the digital control logic levels are compatible with the specified input thresholds for the chosen supply voltage.

Analog Switches, Multiplexers, Demultiplexers Part Context

This part belongs to the MAX4704 family of low-voltage analog multiplexers manufactured by Analog Devices Inc./Maxim Integrated. It serves as a compact solution for signal routing in portable and battery-powered devices. The EGC+ designation indicates the 12-pin QFN package variant with an exposed thermal pad designed for efficient heat dissipation and robust surface-mount assembly.

Analog Switches, Multiplexers, Demultiplexers Replacement Considerations

The MAX4704EGC is the non-tape-and-reel equivalent of this component. Both share identical electrical characteristics and pin configurations. Verify that the manufacturing lot and packaging requirements match the production needs when substituting between these variants.

Analog Switches, Multiplexers, Demultiplexers FAQ

What is the maximum on-resistance flatness specified for the MAX4704?

The maximum on-resistance flatness is specified as 5Ω at +25°C and 10Ω across the full temperature range when powered from a +2.7V supply.

How does the MAX4704 handle overvoltage conditions on analog inputs?

Internal diodes clamp signals exceeding V+ or GND. For protection beyond absolute maximum ratings, external blocking diodes can be added to limit forward-diode current to the maximum rating.
