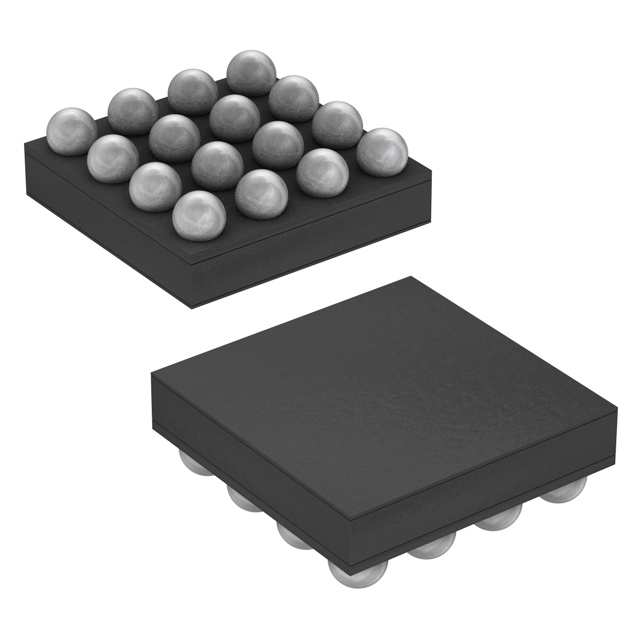

MAX4747EWE+T is listed in the Analog Switches, Multiplexers, Demultiplexers range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC SWITCH QUAD SPST 16WLP. Review the specifications below when checking this part for your BOM.
Analog Switches, Multiplexers, Demultiplexers specifications for MAX4747EWE+T
- Description：IC SWITCH QUAD SPST 16WLP
- Series：*
- Mfr：Analog Devices Inc./Maxim Integrated
- Package：Bulk
- Switch Circuit：-
- Multiplexer/Demultiplexer Circuit：-
- On-State Resistance (Max)：-
- Channel-to-Channel Matching (ΔRon)：-
- Voltage - Supply, Single (V+)：-
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：-
- -3db Bandwidth：-
- Charge Injection：-
- Channel Capacitance (CS(off), CD(off))：-
- Current - Leakage (IS(off)) (Max)：-
- Crosstalk：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Number of Circuits：-
Analog Switches, Multiplexers, Demultiplexers datasheet and documents for MAX4747EWE+T
Analog Switches, Multiplexers, Demultiplexers Overview
The MAX4747EWE+T is a low-voltage, quad single-pole single-throw (SPST) analog switch in a 16-bump wafer-level package. It operates from a single +2V to +11V supply and handles rail-to-rail analog signals. The device features guaranteed on-resistance of 50Ω max at +3V and 25Ω max at +5V, with channel matching of 3.5Ω max at +3V and 3Ω max at +5V. Leakage current is less than 0.1nA, and quiescent power consumption is under 0.5nW typical. It supports TTL/CMOS logic inputs, offers -84dB crosstalk and -72dB off-isolation at 1MHz, and operates within a temperature range of -40°C to +85°C.
Analog Switches, Multiplexers, Demultiplexers Feature Summary
- Ultra-low power consumption suitable for battery-powered applications
- Rail-to-rail signal handling capability across the full supply voltage range
- Compact 2mm x 2mm wafer-level package design
Analog Switches, Multiplexers, Demultiplexers Applications
- Battery-Powered Systems
- Audio/Video-Signal Routing
- Low-Voltage Data-Acquisition Systems
- Cell Phones
- Communications Circuits
- Glucose Meters
- PDAs
Analog Switches, Multiplexers, Demultiplexers Procurement Notes
Verify the component against official Maxim Integrated datasheets to confirm electrical parameters and pin configurations. Ensure the ordering suffix matches the required package type and lead-free status. Cross-reference specifications with authorized distributors to validate authenticity and compliance with RoHS standards before procurement.
Analog Switches, Multiplexers, Demultiplexers Selection Notes
Select this component for designs requiring minimal board space and ultra-low standby power. Verify that the application logic levels are compatible with the specified TTL/CMOS thresholds. Confirm that the analog signal range remains within the supply voltage limits to maintain optimal on-resistance performance.
Analog Switches, Multiplexers, Demultiplexers Part Context
This part belongs to the MAX4747–MAX4750 family of low-voltage analog switches. While other variants offer different switch configurations such as normally closed or SPDT arrangements, the MAX4747 specifically provides four normally open channels. All members share similar electrical characteristics and packaging options including TSSOP, TQFN, and WLP.
Analog Switches, Multiplexers, Demultiplexers Replacement Considerations
Direct substitutes include MAX4748EWE+T, MAX4749EWE+T, and MAX4750EWE+T from the same series. These alternatives share identical packages and electrical profiles but differ in switch configuration, offering normally closed or SPDT options instead of the standard NO layout.
