MAX4867ELT+T

Power Management - Specialized Overview

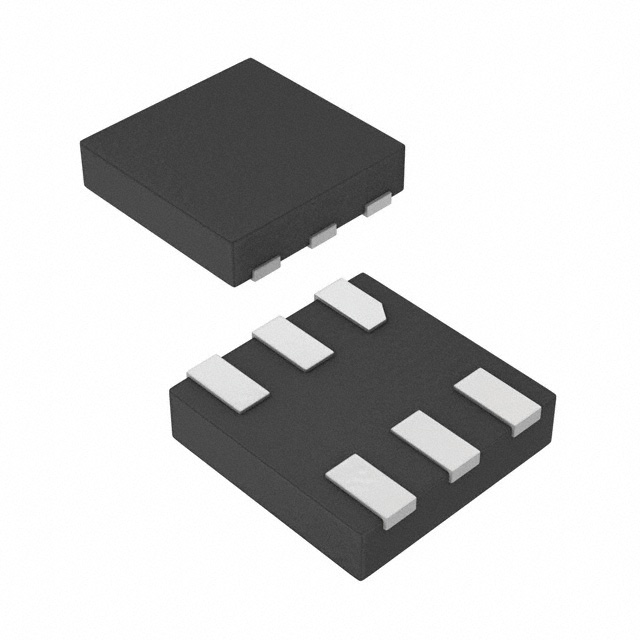

The MAX4867ELT+T is an overvoltage protection controller with reverse polarity protection, manufactured by Analog Devices Inc./Maxim Integrated. It operates within a supply voltage range of 1.2V to 28V and features a typical supply current of 68µA. The device is housed in a compact 6-UDFN surface-mount package and supports operation across an extended temperature range from -40°C to +85°C. Designed for robust circuit protection, it integrates control logic to manage overvoltage events while safeguarding against incorrect power input.

Power Management - Specialized Feature Summary

• Integrates overvoltage protection and reverse polarity protection functions
• Operates with low supply current for energy efficiency
• Supports wide input voltage range up to 28V
• Available in compact surface-mount packaging

Power Management - Specialized Applications

• Portable electronic devices requiring power line protection
• Battery-powered systems needing reverse polarity safeguards
• Industrial equipment with variable supply voltages
• Consumer electronics utilizing low-power ICs

Power Management - Specialized Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and lead times prior to ordering. Ensure storage conditions meet specified humidity and temperature limits to maintain integrity. Review datasheet revisions for any functional updates before finalizing design integration.

Power Management - Specialized Selection Notes

Select this component when simultaneous overvoltage and reverse polarity protection is required in space-constrained designs. Evaluate the 1.2V to 28V operating range against system supply variations. Consider the 6-UDFN footprint for PCB layout optimization. Compare supply current specifications against other protection controllers to ensure compatibility with low-power requirements.

Power Management - Specialized Part Context

The MAX4867 series belongs to Maxim Integrated's portfolio of power management solutions. This specific model focuses on protecting sensitive loads from abnormal power conditions. It complements other voltage regulators and supervisors within the same product family, offering integrated protection rather than discrete components.

Power Management - Specialized Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases or manufacturer cross-reference tools for potential alternatives. Verify pinout compatibility and electrical specifications before considering any replacement options.
