MAX4947EBA+T

$2.87

Description：IC SWITCH DPDT X 3 5.5OHM 25UCSP
Series：-

SKU:1b1ccb34d7ea Category: Analog Switches, Multiplexers, Demultiplexers Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MAX4947EBA+T is listed in the Analog Switches, Multiplexers, Demultiplexers range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC SWITCH DPDT X 3 5.5OHM 25UCSP. Review the specifications below when checking this part for your BOM.

Analog Switches, Multiplexers, Demultiplexers specifications for MAX4947EBA+T

Description：IC SWITCH DPDT X 3 5.5OHM 25UCSP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Bulk
Switch Circuit：DPDT
Multiplexer/Demultiplexer Circuit：2:02
On-State Resistance (Max)：5.5Ohm
Channel-to-Channel Matching (ΔRon)：300mOhm
Voltage - Supply, Single (V+)：1.8V ~ 5.5V
Voltage - Supply, Dual (V±)：-
Switch Time (Ton, Toff) (Max)：800ns, 800ns
-3db Bandwidth：300MHz
Charge Injection：10pC
Channel Capacitance (CS(off), CD(off))：15pF
Current - Leakage (IS(off)) (Max)：3nA
Crosstalk：-90dB @ 1MHz
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount

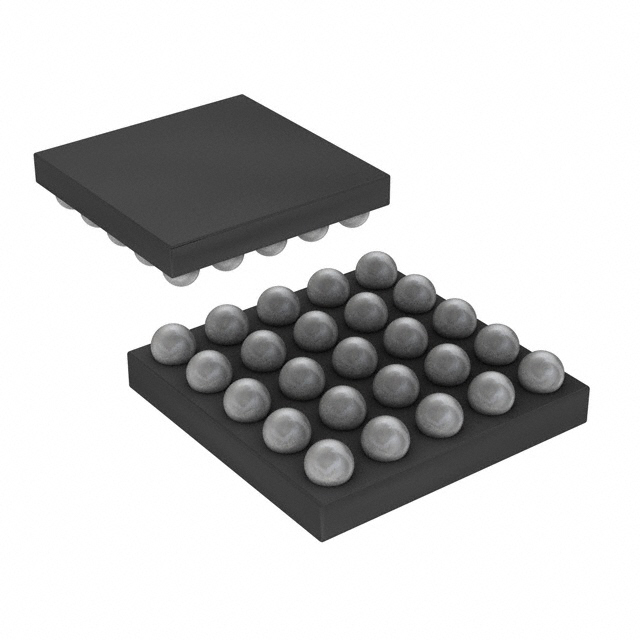

Package / Case：25-WFBGA, CSPBGA
Supplier Device Package：25-UCSP (2.54x2.54)
Number of Circuits：3

Analog Switches, Multiplexers, Demultiplexers datasheet and documents for MAX4947EBA+T

MAX4947EBA+T

Analog Switches, Multiplexers, Demultiplexers Overview

The MAX4947EBA+T is a hex SPDT data switch manufactured by Analog Devices Inc./Maxim Integrated. It operates from a single +1.8V to +5.5V supply voltage. The device features a typical on-resistance of 4Ω and a low capacitance of 30pF, making it suitable for high-speed data switching applications. It includes three logic inputs to control the switches in pairs. The component supports rail-to-rail signal handling and is available in small 24-pin TQFN packages.

Analog Switches, Multiplexers, Demultiplexers Feature Summary

Triple double-pole/double-throw (DPDT) switch configuration
Low on-resistance of 4Ω typical value
Low-capacitance switches at 30pF typical
Wide supply capability from 1.8V to 5.5V

Analog Switches, Multiplexers, Demultiplexers Applications

Multiplex SDIO or Memory Stick interfaces
USB signal switching
UART signal switching

Analog Switches, Multiplexers, Demultiplexers Procurement Notes

Verify the specific ordering suffix against official documentation to confirm package type and RoHS compliance status. Ensure that the requested part number matches the exact pin count and thermal pad requirements specified in the datasheet. Confirm availability through authorized distributors as stock levels may vary.

Analog Switches, Multiplexers, Demultiplexers Selection Notes

Select this component for designs requiring high-speed analog switching with minimal signal distortion. Consider the 4Ω on-resistance and 30pF capacitance for bandwidth-sensitive applications. Ensure the power supply range aligns with the 1.8V to 5.5V operational limits and verify logic input compatibility.

Analog Switches, Multiplexers, Demultiplexers Part Context

This part belongs to the MAX4947/MAX4948 series of hex SPDT data switches. It is designed for compact applications where space is limited, offering integration in small TQFN or UCSP packages. The series is optimized for portable electronics and high-speed data bus multiplexing tasks.
