MAX5868EXE+

Overview

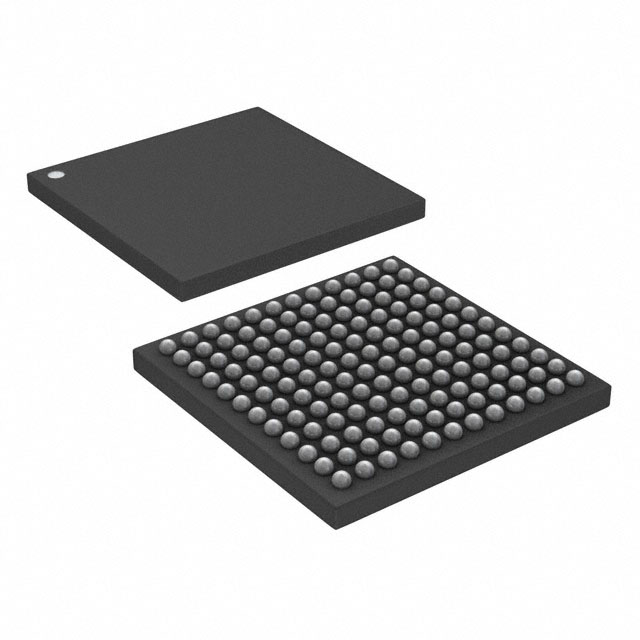

The MAX5868EXE+ is a high-performance digital-to-analog converter manufactured by Analog Devices Inc./Maxim Integrated. It features a 16-bit resolution and supports sample rates up to 5GSPS, incorporating interpolating and modulation capabilities. The device operates with a frequency of 2GHz and utilizes a 144-LFBGA package. Designed for general-purpose RF applications, it delivers ultra-fast performance with low drift characteristics suitable for demanding signal processing tasks.

Feature Summary

• Supports sample rates up to 5GSPS for high-speed data conversion
• Integrates interpolating and modulation functions within the DAC architecture
• Provides 16-bit resolution for precise signal generation

Applications

• General-purpose RF signal generation
• High-speed digital-to-analog conversion systems
• Interpolating and modulation circuitry

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the part number matches exactly, including the suffix indicating lead-free status. Check current availability as stock levels may fluctuate. Ensure compliance with RoHS3 specifications if required by your manufacturing standards. Review the official datasheet for handling and storage guidelines prior to integration.

Selection Notes

Select this component when high-speed operation at 5GSPS is required alongside 16-bit accuracy. Consider the 144-LFBGA package size for PCB layout constraints. Evaluate power consumption and thermal management needs given the high-speed nature of the device. Compare against other DACs if lower sample rates suffice, but prioritize this model for applications demanding minimal drift and high interpolation capabilities.

Part Context

This device belongs to the Maxim Integrated line of high-speed data converters. It is designed to bridge digital baseband signals to analog RF frequencies efficiently. The inclusion of on-chip interpolation reduces the load on preceding digital processors. It serves as a critical interface in modern communication systems requiring precise waveform synthesis.

Replacement Considerations

No public confirmed substitute part numbers are available.
