MAX6071ANT25+T

$3.81

Description：IC VREF SERIES 0.1% 6WLP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6c42051b4dfe Category: Voltage Reference Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC VREF SERIES 0.1% 6WLP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)
Output Type：Fixed
Voltage - Output (Min/Fixed)：2.5V
Voltage - Output (Max)：-
Current - Output：10 mA
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount

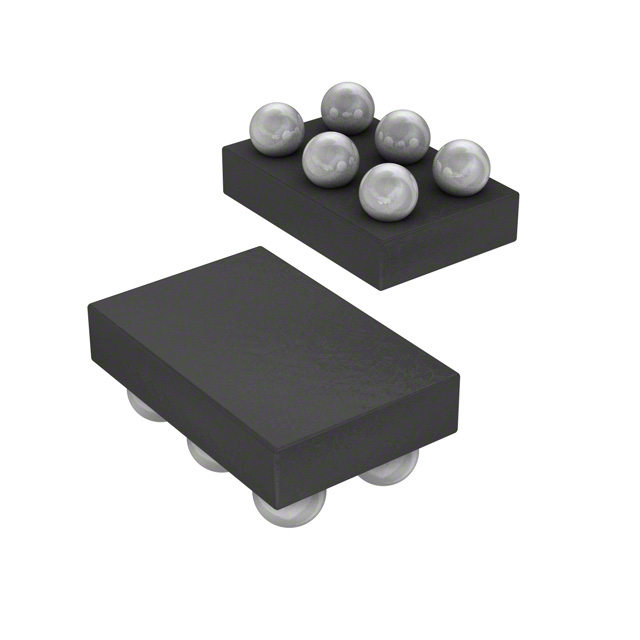

Package / Case：6-XFBGA, WLBGA
Supplier Device Package：6-WLP (1.42x0.78)
Grade：-
Qualification：-

Download product information

MAX6071ANT25+T

Overview

The MAX6071ANT25+T is a low-noise, high-precision series voltage reference manufactured by Analog Devices Inc./Maxim Integrated. It provides a fixed output voltage of 2.5V with an initial accuracy of ±0.1% and a temperature drift of 10ppm/°C maximum. The device operates within an input voltage range of 2.8V to 5V and consumes a quiescent supply current of 160µA typical at +25°C. It features a 6-bump WLP package measuring 0.78mm x 1.41mm and supports an output current of up to 10mA while maintaining stability with capacitive loads between 0.1µF and 10µF.

Feature Summary

Provides stable performance over temperature and time with high initial accuracy
Features very low noise specifications for enhanced system accuracy
Includes separate force and sense outputs for remote sensing capability
Offers low dropout voltage and high ripple rejection

Applications

High-Accuracy Industrial and Process Control
Precision Instrumentation
High-Resolution ADCs and DACs
Precision Current Sources
Automotive

Procurement Notes

Verify the specific suffix 'ANT' indicates the WLP package variant rather than the standard SOT23. Confirm that the grade corresponds to the ±0.1% accuracy specification in the official datasheet. Ensure the ordering information matches the exact part number for the 2.5V output option. Check for any RoHS compliance documentation if required for your manufacturing process.

Selection Notes

Select this component when a compact footprint is required alongside high precision. The WLP package significantly reduces board space compared to traditional packages. Consider the 2.5V output level suitability for your specific reference needs. Evaluate the low power consumption against your system's battery life requirements.

Part Context

This part belongs to the MAX6070/MAX6071 family of low-noise, high-precision series voltage references. The MAX6071 variant distinguishes itself from the MAX6070 by lacking a filter pin, resulting in faster turn-on settling times. Both families share similar electrical characteristics but offer different packaging options including SOT23 and WLP.
