MAX77540AAWV+T

$3.32

Description：IC REG BUCK PROG 3A/3A DL 30WLP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:68f26d1dfda8 Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MAX77540AAWV+T is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC REG BUCK PROG 3A/3A DL 30WLP. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MAX77540AAWV+T

Description：IC REG BUCK PROG 3A/3A DL 30WLP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Programmable
Number of Outputs：2
Voltage - Input (Min)：4V
Voltage - Input (Max)：16V
Voltage - Output (Min/Fixed)：0.5V
Voltage - Output (Max)：5.2V
Current - Output：3A, 3A
Frequency - Switching：500kHz, 1MHz, 1.6MHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

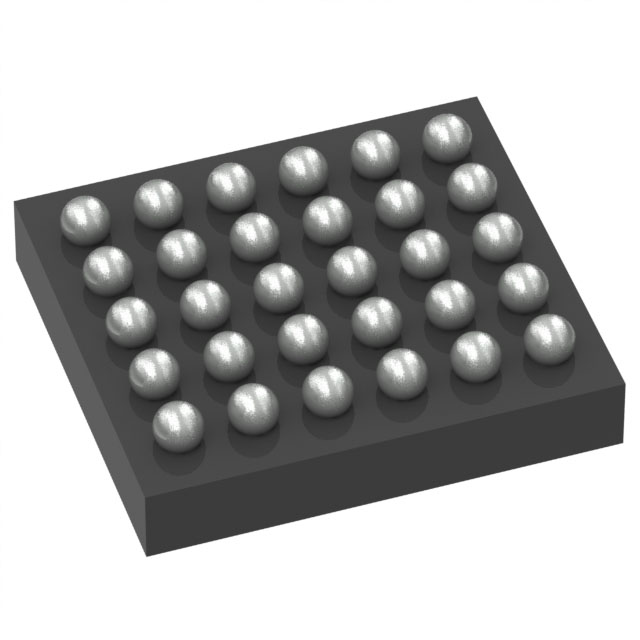

Package / Case：30-WFBGA, WLBGA
Supplier Device Package：30-WLP (2.51x2.31)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MAX77540AAWV+T

MAX77540AAWV+T

Voltage Regulators - DC DC Switching Regulators Overview

The MAX77540AAWV+T is a high-efficiency buck converter featuring two 3A switch phases, designed for single-cell lithium-ion and 5V DC systems. It utilizes an adaptive constant on-time (COT) current mode control architecture. The dual phases can be configured as one 6A output or two independent 3A outputs. Input voltage ranges from 2.2V to 5.5V, with adjustable output voltages between 300mV and 5.2V. The device supports programmable switching frequencies of 500kHz, 1MHz, and 1.6MHz. It operates within a junction temperature range of -40°C to +125°C and features a static current of 215µA.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Adaptive COT current mode control architecture for fast transient response
Configurable dual-phase topology supporting 1x3A or 2x3A output modes
I2C-compatible interface for dynamic voltage adjustment and configuration
Integrated spread spectrum modulation for EMI optimization

Voltage Regulators - DC DC Switching Regulators Applications

Single-cell lithium-ion battery powered systems
5V DC system power distribution
Microprocessor and FPGA core voltage regulation
VR/AR headsets and gaming consoles
Network switches and routers

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging when sourcing. Confirm the AA variant specifications against official Analog Devices documentation to ensure compatibility with required input voltage ranges and thermal performance targets. Cross-reference the WLP-30 package dimensions for PCB layout requirements.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for applications requiring flexible phase configuration between high-current single-output or dual-output topologies. The wide input voltage range accommodates direct connection to single-cell lithium batteries without additional boost stages. Consider the I2C adjustability for systems requiring dynamic voltage scaling during operation.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MAX77540 family of high-efficiency synchronous buck converters. It shares architectural similarities with other Maxim Integrated PMICs but is distinct in its specific 2.2V to 5.5V input range and WLP-30 footprint. It serves as a compact power solution for space-constrained portable electronics.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

MAX77540AAWV+ is the non-tape-and-reel equivalent. MAX77540AAWE+ is a different package variant; verify pinout and thermal characteristics before substitution.
