MAX77654AENVN+

Power Management - Specialized Overview

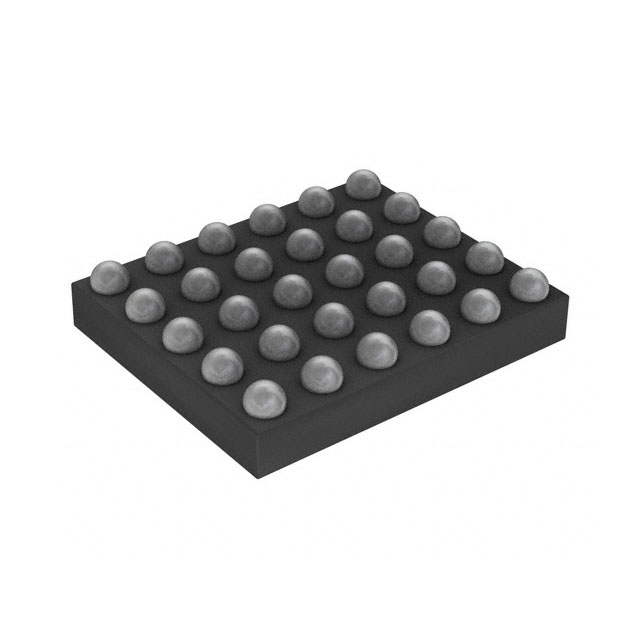

The MAX77654AENVN+ is an ultra-low power PMIC featuring a 3-output SIMO and integrated battery charger. It operates within an input voltage range of 2.7 V to 5.5 V, supporting output voltages from 800 mV to 5.5 V. The device draws 6 uA input current and delivers up to 100 mA output current. It functions between -40°C and +85°C with 1.632 W power dissipation. Packaged in a 30-WLP (2.79x2.34 mm) SMD/SMT format.

Power Management - Specialized Feature Summary

• Integrates a single-inductor multiple-output (SIMO) architecture for efficient power conversion
• Includes dedicated battery charging circuitry for low-power applications
• Designed for size-constrained systems requiring high efficiency

Power Management - Specialized Applications

• Low-power portable electronic devices
• Battery-powered sensor nodes
• Wearable technology platforms

Power Management - Specialized Procurement Notes

Verify component authenticity through authorized Analog Devices channels due to limited supply status. Confirm package integrity upon receipt as the WLP form factor requires careful handling. Ensure compatibility with existing PCB layouts before integration. Cross-reference datasheet revisions to confirm pinout consistency. Validate thermal performance under actual operating conditions.

Power Management - Specialized Selection Notes

Select this component when system design demands minimal footprint alongside integrated charging capabilities. The SIMO topology reduces external component count compared to discrete solutions. Evaluate input voltage stability against the 2.7 V minimum threshold. Consider the 100 mA limit for load requirements. Assess thermal management needs given the specified power dissipation rating.

Power Management - Specialized Part Context

Part of the MAX77654 series designed for highly integrated power management. The series targets applications where space and efficiency are critical constraints. Variants include different packaging options like MAX77654BENV+T. The family emphasizes ultra-low power consumption for extended battery life in portable electronics.

Power Management - Specialized Replacement Considerations

MAX77654BENV+T offers similar functionality with reel packaging. MAX77654MENV+T provides alternative configuration options. Verify electrical parameters and pin compatibility before substitution. Review datasheet differences regarding specific feature enablement.
