MAX77816CEWP+T is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC REG BUCK BOOST ADJ 5A 20WLP. Review the specifications below when checking this part for your BOM.
Voltage Regulators - DC DC Switching Regulators specifications for MAX77816CEWP+T
- Description：IC REG BUCK BOOST ADJ 5A 20WLP
- Series：-
- Mfr：Analog Devices Inc./Maxim Integrated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Function：Step-Up, Step-Down
- Output Configuration：Positive
- Topology：Buck, Boost
- Output Type：Adjustable
- Number of Outputs：1
- Voltage - Input (Min)：2.3V
- Voltage - Input (Max)：5.5V
- Voltage - Output (Min/Fixed)：2.6V
- Voltage - Output (Max)：5.14V
- Current - Output：5A
- Frequency - Switching：2.5MHz
- Synchronous Rectifier：No
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Surface Mount

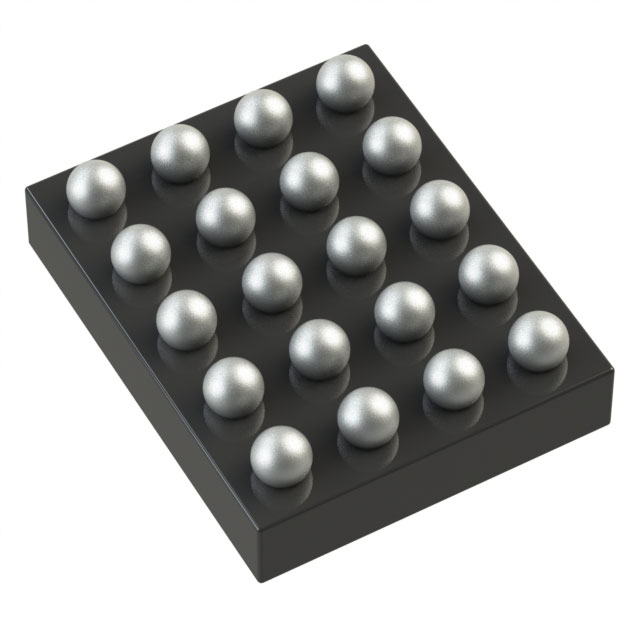

- Package / Case：20-WFBGA, WLBGA
- Supplier Device Package：20-WLP (1.83x2.13)
- Grade：-
- Qualification：-
Voltage Regulators - DC DC Switching Regulators datasheet and documents for MAX77816CEWP+T
Voltage Regulators - DC DC Switching Regulators Overview
The MAX77816CEWP+T is a high-efficiency buck-boost switching regulator IC manufactured by Analog Devices Inc./Maxim Integrated. It features a single positive adjustable output ranging from 2.6 V to 5.14 V with a switch current capacity of 5 A. The device operates within an input voltage range of 2.3 V to 5.5 V and utilizes a 2.5 MHz switching frequency. It is housed in a 20-WLP package (1.83x2.13 mm) and supports surface mount installation. The component functions across a temperature range of -40°C to +85°C, offering load regulation of 0.125 %/A.
Voltage Regulators - DC DC Switching Regulators Feature Summary
- Integrates high-efficiency buck-boost topology for stable regulation across varying input conditions
- Supports up to 5 A switch current capability for demanding power delivery applications
- Utilizes compact 20-WLP packaging to minimize solution footprint
Voltage Regulators - DC DC Switching Regulators Applications
- Battery-powered portable electronics requiring wide input voltage ranges
- Mobile communication devices needing efficient power management
- Embedded systems utilizing lithium-ion or lithium-polymer battery sources
Voltage Regulators - DC DC Switching Regulators Procurement Notes
Verify the specific suffix 'CEWP' against official Analog Devices documentation to confirm pinout and thermal characteristics. Ensure compatibility with existing PCB layouts due to the 20-WLP package dimensions. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration into production environments.
Voltage Regulators - DC DC Switching Regulators Selection Notes
Select this component when a single-output regulator must handle input voltages both above and below the desired output level. The 5 A current rating suits applications requiring significant power density. Consider the 2.5 MHz frequency for balancing efficiency against external component size requirements.
Voltage Regulators - DC DC Switching Regulators Part Context
This part belongs to the MAX77816 series of high-efficiency buck-boost regulators. The series is designed for mobile and portable applications where battery life and space constraints are critical. The CEWP variant specifically denotes the WLP package configuration used in this model.
Voltage Regulators - DC DC Switching Regulators Replacement Considerations
The MAX77816BEWP+ is a related variant within the same family. Verify if the alternative meets the specific 5 A current requirement and package compatibility before substitution.
