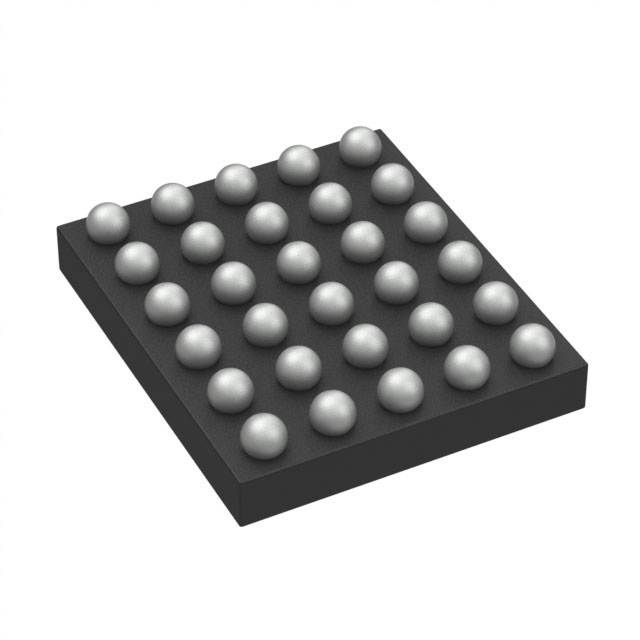

MAX77958DEWV+

Power Management - Specialized Overview

The MAX77958DEWV+ is a standalone USB Type-C and Power Delivery (PD) controller IC manufactured by Analog Devices Inc./Maxim Integrated. It integrates USB PD protocol negotiation, CC pin detection, and power path management. The device supports USB PD 3.0 standards for source and sink operations. It features integrated protection against overvoltage and overcurrent conditions to safeguard connected accessories or devices. The component operates within a specified voltage range and is designed for reliable communication in complex charging ecosystems.

Power Management - Specialized Feature Summary

• Integrates USB Type-C CC detection and USB Power Delivery messaging for accessory identification
• Performs standalone USB PD protocol negotiation without external microcontroller dependency
• Provides hardware-level protection against overvoltage and overcurrent events

Power Management - Specialized Applications

• USB Type-C port controllers in consumer electronics
• Power delivery hubs and docking stations
• Portable device charging systems requiring PD 3.0 compliance

Power Management - Specialized Procurement Notes

Verify the exact suffix DEWV+ against official Analog Devices documentation to confirm package type and temperature grade. Confirm current availability status as distribution channels may vary. Ensure compatibility with existing PCB layout and firmware requirements before procurement.

Power Management - Specialized Selection Notes

Select this component when a standalone solution for USB Type-C and PD 3.0 is required without external processing overhead. Consider its integrated protection features for robust system design. Evaluate the WLP package constraints against board space limitations compared to other PMIC options.

Power Management - Specialized Part Context

This part belongs to the MAX77958 series of USB Type-C controllers. It is distinct from wireless charging receivers like the MAX77950EWW+T and battery fuel gauges like the DS2775G+. It specifically addresses wired power delivery and connection management rather than battery monitoring or wireless induction.

Power Management - Specialized Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult Analog Devices official resources for direct replacements or pin-compatible alternatives.
