MAZD10000L

Single Zener Diodes Overview

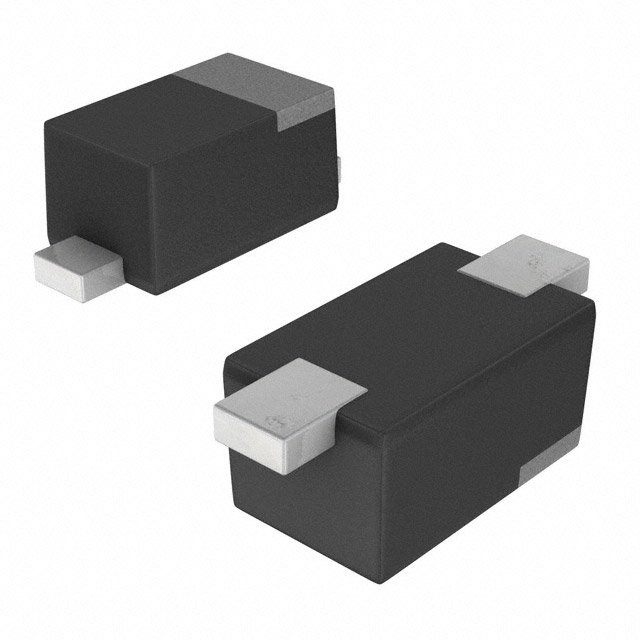

The MAZD10000L is a silicon planar Zener diode from the Panasonic MAZDxxxG series, designed for constant voltage, constant current, waveform clipping, and surge absorption circuits. It features low noise characteristics and operates within a junction temperature range of -55°C to +150°C. The device utilizes an SSSMini2-F3 package with two pins: Anode (Pin 1) and Cathode (Pin 2). Key electrical parameters at 25°C include a nominal Zener voltage of 10.0V (range 9.4V to 10.6V), a maximum reverse current of 0.05µA, and a Zener operating resistance of 30Ω. The total power dissipation is rated at 120mW.

Single Zener Diodes Feature Summary

• Low noise type construction
• Silicon planar technology
• Compact SSSMini2-F3 surface mount package

Single Zener Diodes Applications

• Constant voltage circuits
• Waveform clipper circuits
• Surge absorption circuits

Single Zener Diodes Procurement Notes

Verify component authenticity through authorized distributors or Panasonic Industry directly. Confirm RoHS compliance status and check the official Panasonic semiconductor website for the latest maintenance or discontinuation lifecycle information before finalizing procurement plans.

Single Zener Diodes Selection Notes

Select this component based on its specific 10V nominal Zener voltage and low reverse leakage requirements. Ensure the design accommodates the 120mW total power dissipation limit and verify that the SSSMini2-F3 package dimensions fit the target PCB layout constraints.

Single Zener Diodes Part Context

This part belongs to the MAZDxxxG series of silicon planar Zener diodes manufactured by Panasonic Electronic Components. The series is engineered for general electronic equipment applications requiring stable voltage regulation and signal processing capabilities in compact form factors.

Single Zener Diodes Replacement Considerations

Consult the official Panasonic replacement guide for verified substitute part numbers. Cross-reference specifications such as Zener voltage tolerance, package footprint, and thermal ratings to ensure functional compatibility.
