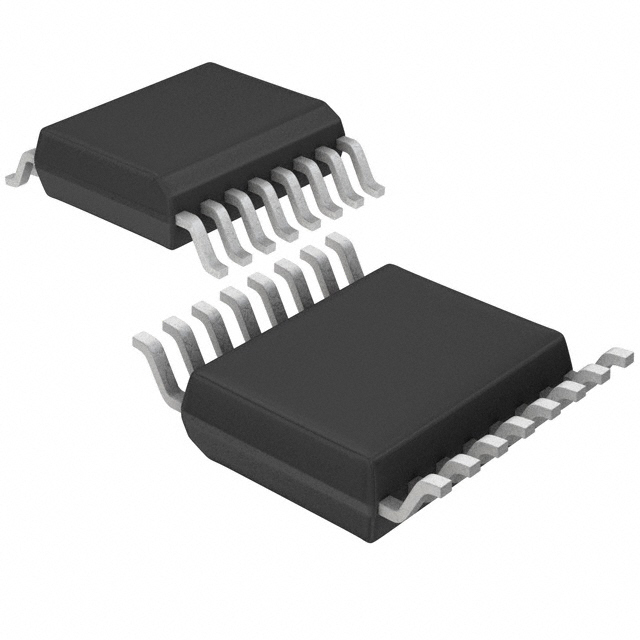

MB15E03SLPFV1-G-ER-6E1

Clock Generators, PLLs, Frequency Synthesizers Overview

The MB15E03SLPFV1-G-ER-6E1 is a single serial input PLL frequency synthesizer manufactured by Infineon Technologies. It features an on-chip prescaler and supports pulse swallow operation for wide frequency synthesis ranges. The device is designed for applications requiring low spurious and phase noise characteristics with excellent lock-up time performance. It operates within a voltage range of 2.4 to 3.6 volts and offers selectable charge pump currents. The component is available in specific packaging configurations suitable for automated assembly processes.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Single serial input interface for simplified control logic integration
• On-chip dual-modulus prescaler enabling flexible pulse swallow operation
• Low spurious and phase noise performance for clean signal generation
• Selectable charge pump current options for optimized loop filter design

Clock Generators, PLLs, Frequency Synthesizers Applications

• Frequency synthesis in wireless communication systems
• Local oscillator generation in RF transceivers
• Clock generation for digital subscriber line (DSL) modems
• Signal processing equipment requiring stable frequency references

Clock Generators, PLLs, Frequency Synthesizers Procurement Notes

Verify the exact suffix configuration against official Infineon documentation, as ordering codes may vary by region or revision. Confirm availability status directly with authorized distributors, as this part number may be subject to discontinuation or limited stock conditions. Ensure compatibility with existing PCB footprint and thermal requirements before finalizing procurement orders.

Clock Generators, PLLs, Frequency Synthesizers Selection Notes

Select this component when a single PLL synthesizer with integrated prescaler is required for RF applications. Consider the operating voltage range and current consumption specifications relative to system power constraints. Evaluate the selectable charge pump currents to match the desired loop bandwidth and stability requirements of the target application design.

Clock Generators, PLLs, Frequency Synthesizers Part Context

This part belongs to the MB15E series of single PLL frequency synthesizers from Infineon Technologies. It shares functional similarities with other models in the family but differs in specific pinout, packaging, and electrical parameter variations defined by its unique suffix code. It serves as a specialized solution for compact RF front-end designs.

Clock Generators, PLLs, Frequency Synthesizers Replacement Considerations

Consult official Infineon substitution guides for verified alternative part numbers. Cross-reference pin compatibility and electrical specifications before considering any substitute components to ensure system functionality remains unaffected.
