MB85RS1MTPW-G-APEWE1

Memory IC Overview

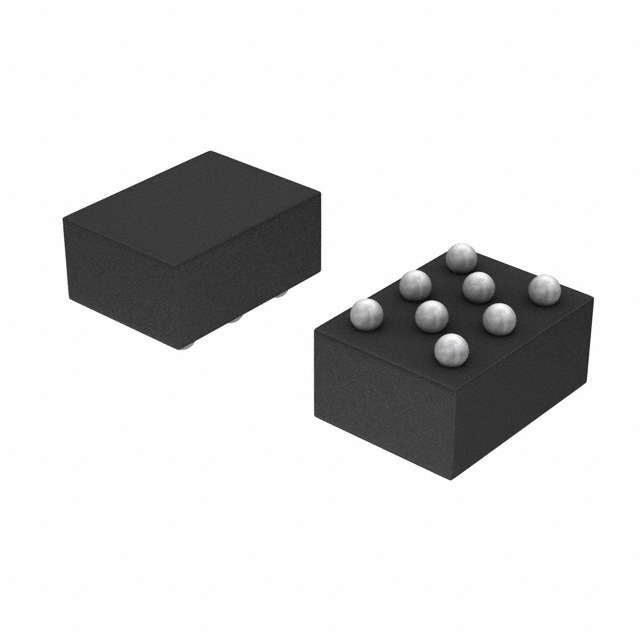

The MB85RS1MTPW-G-APEWE1 is a 1 Mbit (131,072 words x 8 bits) Ferroelectric Random Access Memory (FeRAM) integrated circuit manufactured by RAMXEED. It utilizes a Serial Peripheral Interface (SPI) for communication and operates within a supply voltage range of 1.7 V to 3.6 V. The device supports clock frequencies up to 25 MHz at lower voltages, 30 MHz generally, and 40 MHz using the Fast Read command at higher voltages. It features high endurance of 10^13 read/write operations per byte and data retention of 10 years at +85°C or 95 years at +55°C. The component is housed in an 8-pin plastic Wafer Level Package (WLP-8P-M01) with dimensions of 2.28 mm x 3.09 mm.

Memory IC Feature Summary

• Non-volatile memory architecture utilizing ferroelectric process technology that retains data without backup power.
• High write endurance capability reaching 10^13 cycles per byte, eliminating wait times associated with Flash or EEPROM technologies.
• Integrated SPI interface supporting Mode 0 and Mode 3 with programmable block protection and write protect functions.
• Low power consumption characteristics including standby current of 120 µA maximum and sleep mode functionality.

Memory IC Applications

• Data logging systems requiring frequent writes and non-volatile storage
• Industrial control equipment needing reliable parameter storage
• IoT devices operating under low power constraints

Memory IC Procurement Notes

Verify the specific package type and shipping form against official documentation before procurement. Confirm that the ordering suffix corresponds exactly to the required WLP-8P-M01 package and embossed carrier tape quantity. Ensure compatibility with system voltage levels and SPI timing requirements. Check for moisture sensitivity level restrictions during handling and storage.

Memory IC Selection Notes

Select this component when high endurance and fast write speeds are critical compared to traditional Flash or EEPROM solutions. Consider the 1.7 V to 3.6 V operating range for compatibility with various logic levels. Evaluate the small WLP footprint for space-constrained designs. Verify that the SPI interface modes match the microcontroller capabilities.

Memory IC Part Context

This part belongs to the MB85RS1MT series of FeRAM chips from RAMXEED, formerly Fujitsu Semiconductor Memory Solutions Limited. The series offers non-volatile memory solutions with SPI interfaces. The MB85RS1MT specifically provides 1 Mbit capacity in a compact 8-pin package, designed for applications demanding high reliability and rapid data access.

Memory IC Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
