MB96F636RBPMC-GSE1

Microcontrollers Overview

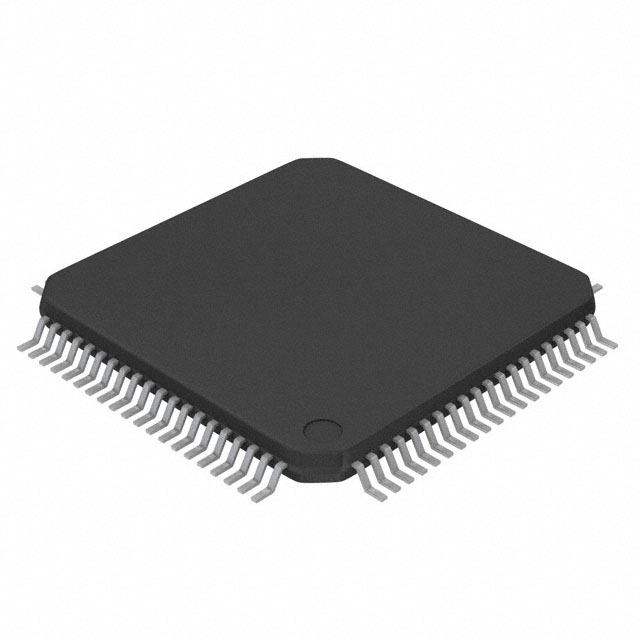

The MB96F636RBPMC-GSE1 is a 16-bit microcontroller from Infineon Technologies, part of the CY96690 series. It utilizes the F2MC-16FX core and operates at a maximum clock frequency of 32 MHz. The device features 288.5 kB of program memory and 24 kB of data RAM. It provides 64 I/O lines and includes an ADC with 8-bit and 10-bit resolution options. Operating within a voltage range of 2 V to 5.5 V, it is housed in an LQFP-80 package suitable for surface mount technology.

Microcontrollers Feature Summary

• Integrates the F2MC-16FX 16-bit core for efficient processing performance.
• Supports automotive applications with extended temperature ranges and robust electrical specifications.
• Includes multiple communication interfaces such as USART and I2C for system connectivity.

Microcontrollers Applications

• Automotive body electronics control
• Instrument cluster management systems
• Powertrain control units

Microcontrollers Procurement Notes

This component is officially listed as End-of-Life (EOL) by Infineon Technologies. Distributors indicate restricted availability or non-stock status in many regions. Verification of current lifecycle status and alternative sourcing channels is required before integration into new designs. Check official termination notifications for specific discontinuation dates.

Microcontrollers Selection Notes

Select this MCU when a 16-bit architecture with high memory capacity is needed for automotive environments. The 288.5 kB flash and 24 kB RAM support complex logic. Ensure the design accommodates the LQFP-80 package dimensions and 2V to 5.5V supply requirements. Consider the EOL status for long-term production viability.

Microcontrollers Part Context

Part of the CY96690 family, designed for automotive grade reliability. The F2MC-16FX core offers a balance of performance and power efficiency. This specific variant emphasizes high I/O count and substantial memory for advanced control tasks in vehicle subsystems.

Microcontrollers Replacement Considerations

Consult Infineon's official cross-reference tools for qualified replacements. Due to the EOL status, direct pin-to-pin substitutes may be limited. Verify compatibility of any alternative components against the original electrical and thermal specifications.
