MBR130LSFT1

Single Diodes Overview

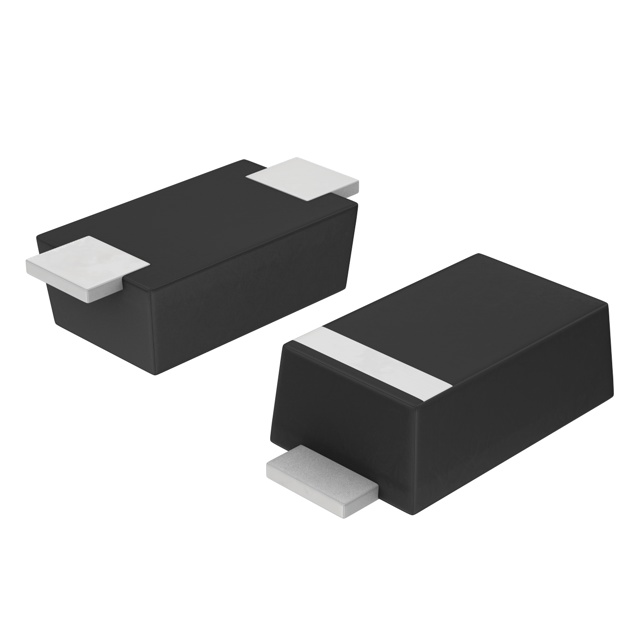

The MBR130LSFT1 is a surface mount Schottky power rectifier manufactured by onsemi. It features a single diode configuration in an SOD-123 plastic package. Key electrical parameters include a maximum repetitive reverse voltage of 30 V and an average forward rectified current of 1 A. The device exhibits a low forward voltage drop, typically 600 mV at 1 A, and supports a non-repetitive peak forward surge current of 40 A. It operates within a junction temperature range of -55 °C to +125 °C.

Single Diodes Feature Summary

• Utilizes Schottky barrier technology for high efficiency and fast switching performance.
• Designed with a low profile SOD-123 surface mount package for automated assembly.
• Constructed using silicon material for robust thermal and electrical stability.

Single Diodes Applications

• DC-DC converter freewheeling applications
• Power supply output rectification
• Reverse polarity protection circuits

Single Diodes Procurement Notes

Verify the specific datasheet revision when sourcing, as onsemi has updated documentation for this component over time. Confirm that the ordering part number includes the 'G' suffix if lead-free compliance is required, although the base model designation remains consistent across revisions. Ensure the supplier provides the official manufacturer data sheet corresponding to the latest technical specifications.

Single Diodes Selection Notes

Select this component for applications requiring a compact surface mount solution with moderate current handling capabilities. The 30 V rating suits low-voltage DC systems. Compare the forward voltage characteristics against other Schottky rectifiers in the same package to ensure optimal efficiency for the specific load conditions. Verify thermal management requirements based on the SOD-123 package limitations.

Single Diodes Part Context

This component belongs to the family of surface mount Schottky power rectifiers offered by onsemi. It shares functional similarities with other devices in the MBR series but is distinguished by its specific SOD-123 footprint and 1 A current rating. It serves as a discrete semiconductor solution for general-purpose rectification tasks in consumer and industrial electronics.

Single Diodes Replacement Considerations

The MBRS130T3G is a documented alternative from the same manufacturer, offering similar electrical ratings in an SMB (DO-214AA) package. Note that the physical footprint differs, requiring PCB layout adjustments. Other equivalents may exist from different vendors, but pin compatibility and package dimensions must be verified before substitution.
