MBR40080CTR

Diode Arrays Overview

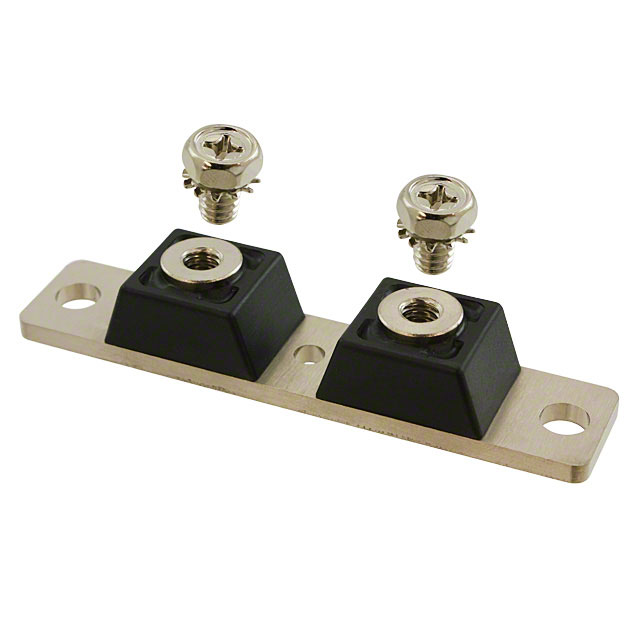

The MBR40080CTR is a silicon power Schottky diode module from the GeneSiC Semiconductor MBR400 series. It features a Twin Tower package with screw mount installation and operates within a junction temperature range of -55 °C to +150 °C. The device provides an average forward current rating of 400 A per package and supports a repetitive peak reverse voltage of 80 V. Key electrical parameters include a maximum forward voltage of 0.84 V at Tj = 150 °C, a thermal resistance of 0.35 °C/W per leg, and a peak forward surge current capability of 3000 A.

Diode Arrays Feature Summary

• High surge current capability for robust transient handling
• Twin Tower package design optimized for high-power applications
• Non-ESD sensitive construction for simplified assembly

Diode Arrays Applications

• Industrial motor drives and inverters
• DC-DC converters in power supply systems
• Freewheeling rectification in high-current circuits

Diode Arrays Procurement Notes

Verify the specific suffix 'CTR' against official documentation to confirm lead configuration details, as datasheets indicate reversed leads for 'R' variants. Confirm RoHS compliance status through manufacturer declarations. Ensure procurement channels are authorized to guarantee component authenticity and traceability for critical industrial deployments.

Diode Arrays Selection Notes

Select this module when a 400 A continuous current rating and 80 V blocking voltage are required. The low forward voltage drop contributes to reduced conduction losses. Verify that the system's cooling infrastructure can manage the specified thermal resistance. Consider the Twin Tower form factor for compatibility with existing mechanical mounting structures.

Diode Arrays Part Context

This component belongs to the MBR400 series of silicon power Schottky diodes manufactured by GeneSiC Semiconductor. The series encompasses various voltage ratings from 45 V to 100 V, all sharing the same 400 A current rating and physical package dimensions. This standardization simplifies inventory management across different voltage requirements within the same product family.

Diode Arrays Replacement Considerations

Direct replacements within the same series include MBR40045CTR and MBR40060CTR for lower voltage applications. For higher voltage needs, MBR400100CTR is available. All variants share identical current ratings and package footprints, allowing for pin-compatible substitution if voltage constraints permit.
