MBR4060PT

Diode Arrays Overview

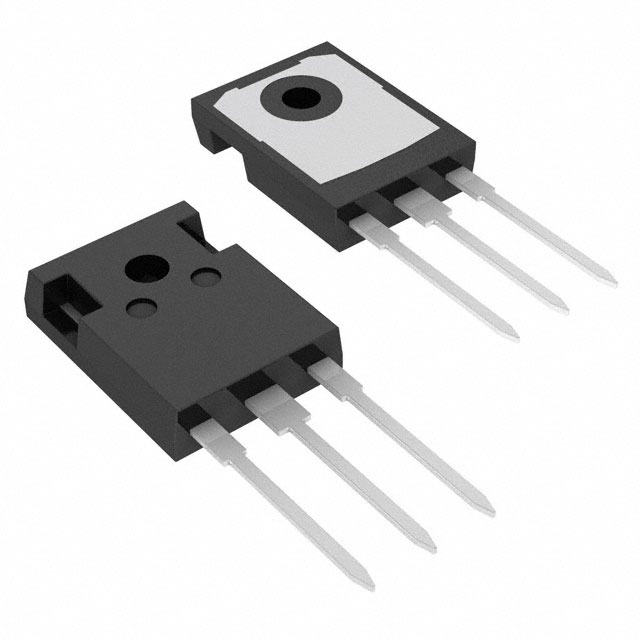

The MBR4060PT is a silicon Schottky rectifier manufactured by onsemi, housed in a TO-247AD-3 package. It features a dual common cathode configuration with a maximum repetitive reverse voltage of 60 V and an average forward current rating of 15 A. The device exhibits a typical forward voltage of 770 mV at rated current and supports a non-repetitive peak forward surge current of 330 A. Operating temperatures range from -55 °C to +150 °C, with a maximum reverse leakage current of 1 mA.

Diode Arrays Feature Summary

• Utilizes silicon Schottky technology for low power loss and high efficiency
• Features a common cathode dual element configuration within a single package
• Designed for free-wheeling diode applications requiring fast switching characteristics

Diode Arrays Applications

• High-efficiency DC-DC converters
• Free-wheeling rectification in synchronous rectifier circuits
• Low voltage power supply output stages

Diode Arrays Procurement Notes

Verify the manufacturer designation carefully, as the MBR4060PT part number has historically been associated with Taiwan Semiconductor. Confirm that the specific unit supplied is explicitly identified as an onsemi product through official documentation or labeling. Ensure the component matches the specified TO-247AD-3 package and electrical parameters before integration into designs.

Diode Arrays Selection Notes

Select this component for applications requiring a 60 V blocking capability with a 15 A continuous current rating in a through-hole TO-247 package. The low forward voltage drop makes it suitable for improving efficiency in low-voltage, high-current power conversion systems. Verify thermal management requirements given the package size and power dissipation characteristics.

Diode Arrays Part Context

This component belongs to the Schottky Diodes & Rectifiers category within onsemi's discrete semiconductor portfolio. It serves as a high-current rectification solution utilizing silicon carbide metal-silicon (SiC) barrier technology principles adapted for silicon substrates to achieve superior switching performance compared to standard PN junction diodes.

Diode Arrays Replacement Considerations

Cross-reference with other 60 V, 15 A dual Schottky rectifiers in TO-247 packages. Verify pinout compatibility and thermal resistance specifications when substituting with equivalent parts from other manufacturers.
