MBRB20200CT-1

$0.73

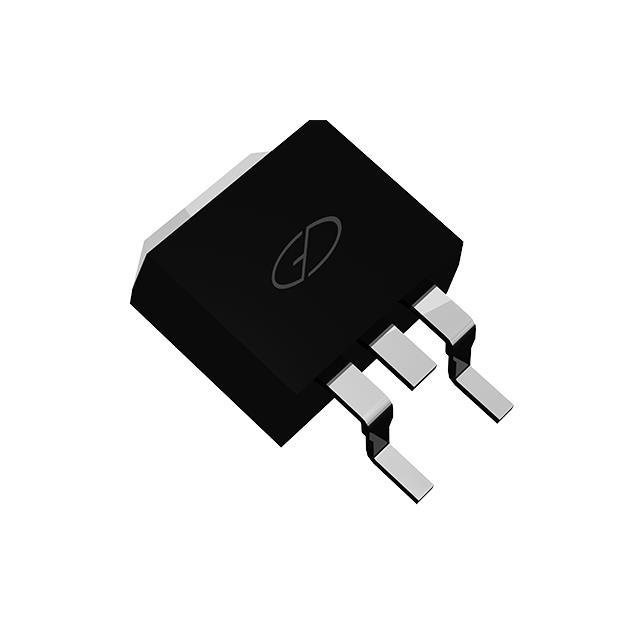

Description：DIODE ARRAY SCHOT 200V 10A TO263
Series：-

SKU:804e84fba548 Category: Diode Arrays Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MBRB20200CT-1 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is DIODE ARRAY SCHOT 200V 10A TO263. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for MBRB20200CT-1

Description：DIODE ARRAY SCHOT 200V 10A TO263
Series：-
Mfr：Good-Ark Semiconductor
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io) (per Diode)：10A
Voltage - Forward (Vf) (Max) @ If：920 mV @ 10 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：50 µA @ 200 V
Operating Temperature - Junction：-55°C ~ 150°C
Mounting Type：Surface Mount
Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device Package：TO-263 (D2PAK)
Grade：-
Qualification：-

Diode Arrays datasheet and documents for MBRB20200CT-1

MBRB20200CT-1

Diode Arrays Overview

The MBRB20200CT-1 is a Schottky Barrier Rectifier manufactured by Good-Ark Semiconductor, housed in a TO-263 package. It features dual rectifier construction with a positive center tap. Key electrical ratings include a maximum repetitive peak reverse voltage of 200 V and a maximum average forward rectified current of 20 A at a case temperature of 105°C. The device exhibits a maximum instantaneous forward voltage of 0.92 V per leg at 10 A and a peak forward surge current capability of 200 A per diode. Thermal resistance from junction to case is 2.0 °C/W per leg.

Diode Arrays Feature Summary

Dual rectifier construction with a positive center tap for efficient power conversion
Low forward voltage drop ensuring high efficiency and reduced power loss
Guardring design provides protection against overvoltage stress and high dv/dt conditions

Diode Arrays Applications

High frequency switching power supplies
DC-DC converters
Polarity protection circuits

Diode Arrays Procurement Notes

Verify the specific ordering suffix and manufacturer documentation when sourcing. Confirm that the component meets RoHS 2015/863/EU compliance requirements for your assembly process. Ensure thermal management solutions align with the specified junction-to-case thermal resistance values during system design.

Diode Arrays Selection Notes

Select this component for applications requiring a 200 V blocking voltage and 20 A continuous current handling in a surface-mount TO-263 package. Consider the dual common cathode configuration for center-tapped transformer applications or parallel operation needs. Evaluate thermal derating curves for ambient temperature constraints.

Diode Arrays Part Context

This part belongs to the MBRB series of Schottky Barrier Rectifiers from Good-Ark Semiconductor. It utilizes platinum barrier metal technology to achieve low forward voltage and high efficiency. The series is designed for use in high-frequency switching power supplies and converters, offering improved performance compared to standard silicon rectifiers.

Diode Arrays Replacement Considerations

Cross-reference with other manufacturers' 20A 200V dual Schottky rectifiers in TO-263 packages. Verify pinout compatibility and thermal characteristics before substitution.
