MBRF10100CTU

Diode Arrays Overview

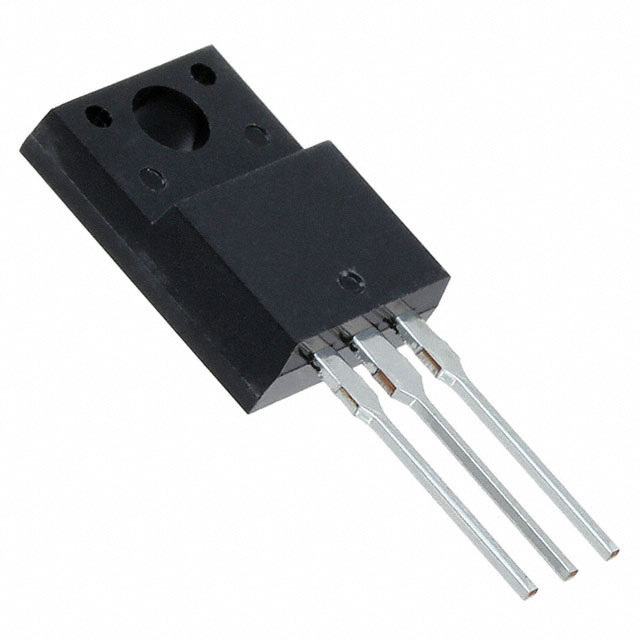

The MBRF10100CTU is a Schottky barrier rectifier manufactured by SMC Diode Solutions. It features a dual common cathode configuration with two elements housed in an ITO-220AB (TO-220AB) package. The device supports a maximum repetitive peak reverse voltage of 100 V and an average forward rectified current of 10 A. Key electrical characteristics include a maximum forward voltage of 0.85 V at 10 A, a non-repetitive peak forward surge current of 120 A, and a maximum reverse leakage current of 200 µA. The junction temperature range spans from -55°C to +150°C.

Diode Arrays Feature Summary

• Utilizes metal-silicon junction technology for majority carrier conduction, enabling high-frequency operation.
• Features a low forward voltage drop to enhance overall system efficiency.
• Incorporates a guard ring structure designed to provide over-voltage protection.
• Constructed with high-purity, high-temperature epoxy encapsulation for mechanical strength.

Diode Arrays Applications

• Low voltage, high frequency inverters
• Free wheeling diode circuits
• Polarity protection applications

Diode Arrays Procurement Notes

Verify the specific suffix 'U' against official manufacturer documentation to confirm compliance status or material composition variations. Ensure the procurement channel sources directly from authorized distributors to guarantee authenticity. Cross-reference the ITO-220AB package dimensions with design requirements before finalizing orders.

Diode Arrays Selection Notes

Select this component for designs requiring a 10 A continuous current rating with a 100 V blocking capability. The ITO-220AB package is suitable for through-hole mounting where thermal dissipation is managed via heatsinking. Consider the 0.85 V forward voltage drop when calculating power losses in low-voltage output stages.

Diode Arrays Part Context

This part belongs to the MBRF series of Schottky barrier rectifiers produced by SMC Diode Solutions. The series is characterized by high current capability and low forward voltage drops. The MBRF10100CTU specifically denotes the 10 A, 100 V variant within the dual common cathode lineup, utilizing the standard TO-220AB form factor.

Diode Arrays Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative manufacturers such as Littelfuse or Good-Ark based on matching electrical ratings and pin configurations.
