MBRF5200 C0G

Single Diodes Overview

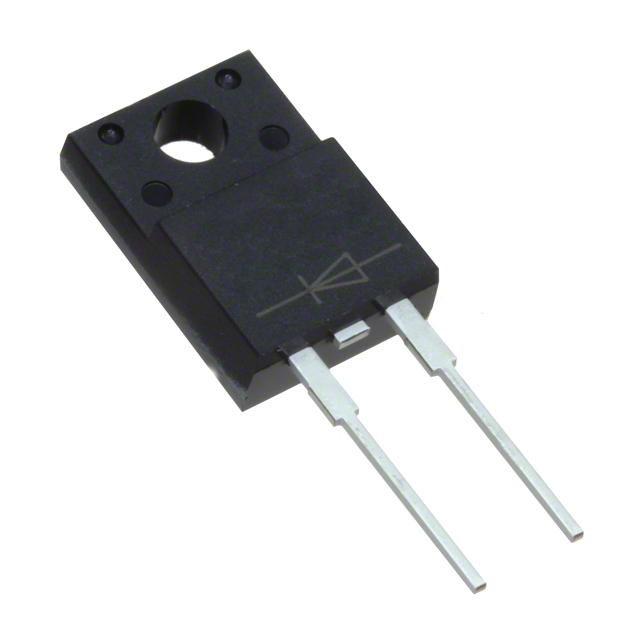

The MBRF5200 C0G is a single Schottky barrier rectifier manufactured by Taiwan Semiconductor Corporation. It features a maximum DC reverse voltage (Vr) of 200 V and an average forward rectified current (Io) of 5 A per diode. The device utilizes an ITO-220AC through-hole package with a full encapsulated, isolated tab configuration. Electrical characteristics include a maximum forward voltage (Vf) of 1.05 V at 5 A and a maximum reverse leakage current of 10 µA at 200 V. The junction operating temperature range extends from -55°C to +150°C.

Single Diodes Feature Summary

• Schottky barrier construction for low power loss and high efficiency
• Guardring structure provides overvoltage protection
• High surge current capability for robust operation
• Halogen-free composition compliant with IEC 61249-2-21 definitions

Single Diodes Applications

• General purpose rectification in power supplies
• Free-wheeling diodes in DC-DC converters
• Reverse polarity protection circuits

Single Diodes Procurement Notes

Verify the specific suffix 'C0G' against the manufacturer's official datasheet to confirm halogen-free status and packaging details. Ensure the ordering code matches the required ITO-220AC mechanical dimensions. Cross-reference the part number with the latest product change notices to confirm manufacturing origin and compliance certifications before finalizing procurement.

Single Diodes Selection Notes

Select this component when a single-diode Schottky rectifier with a 200 V rating and 5 A continuous current capacity is required. The ITO-220AC package is suitable for applications needing thermal isolation via an insulated mounting tab. Consider the low forward voltage drop for improved system efficiency compared to standard silicon rectifiers.

Single Diodes Part Context

This component belongs to the MBRF series of Schottky Barrier Rectifiers from Taiwan Semiconductor. The series offers various voltage ratings and current capacities in through-hole packages. The MBRF5200 specifically addresses mid-power applications requiring fast switching speeds and low conduction losses within a ruggedized axial-leaded or TO-220 style form factor.

Single Diodes Replacement Considerations

Consult official substitution guides for equivalent single Schottky diodes rated at 200 V and 5 A in ITO-220AC packages. Verify pinout compatibility and thermal resistance specifications before substituting.
