MBRS4060CTH

Diode Arrays Overview

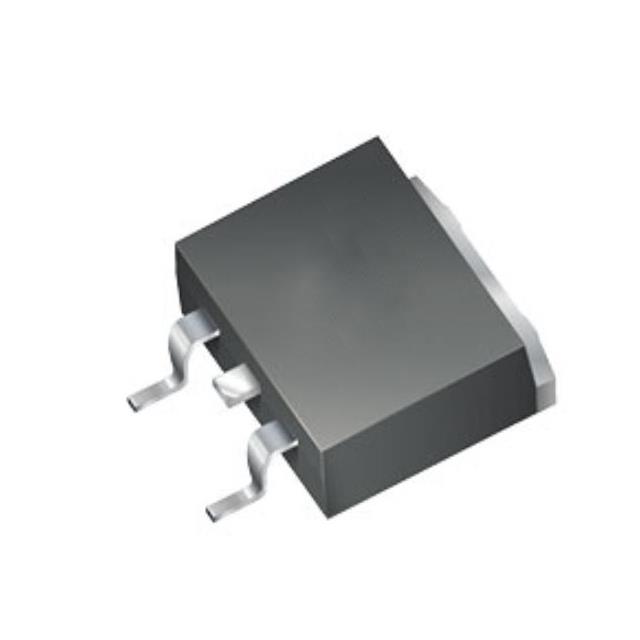

The MBRS4060CTH is a surface mount Schottky barrier rectifier manufactured by Taiwan Semiconductor. It features dual dies in a TO-263AB (D2PAK) package, rated for a repetitive peak reverse voltage of 60V and an average forward current of 40A. The device supports a surge peak forward current of 300A and operates within a junction temperature range of -55°C to +175°C. Electrical characteristics include a maximum forward voltage of 1.00V at 40A and 25°C, with a typical junction-to-case thermal resistance of 1.5°C/W.

Diode Arrays Feature Summary

• AEC-Q101 qualified for automotive reliability standards
• Guard ring structure provides enhanced overvoltage protection
• Low power loss design ensures high conversion efficiency
• Moisture sensitivity level 1 compliant per J-STD-020

Diode Arrays Applications

• Low voltage, high frequency inverters
• DC/DC converter circuits
• Freewheeling diode implementations
• Reverse battery protection systems
• Automotive car lighting applications

Diode Arrays Procurement Notes

Verify the specific ordering code MBRS4060CTH against the manufacturer's latest datasheet version A2103 to confirm current specifications. Ensure the procurement channel sources components from authorized distributors to guarantee authenticity. Confirm that the tape and reel packaging matches the required quantity of 800 units for automated placement processes. Check for RoHS compliance and halogen-free status requirements relevant to the target assembly environment.

Diode Arrays Selection Notes

Select this component when designing circuits requiring high current handling in a surface mount form factor. The TO-263AB package offers superior thermal dissipation compared to smaller packages, supporting the 40A rating. Verify that the system voltage does not exceed the 60V repetitive peak reverse voltage limit. Consider the 175°C maximum junction temperature capability for high-temperature operational environments where standard silicon devices might fail.

Diode Arrays Part Context

This part belongs to the MBRS series of surface mount Schottky barrier rectifiers from Taiwan Semiconductor. It utilizes silicon technology and is housed in a D2PAK case with matte tin plated leads. The device is designed for automated placement and meets UL 94V-0 flammability ratings for the molding compound. It is distinct from through-hole variants like the MBR4060CT due to its specific mounting and thermal characteristics.

Diode Arrays Replacement Considerations

Direct replacements must match the 40A current rating, 60V voltage rating, and TO-263AB package. Verify pinout compatibility as the marking indicates a common cathode configuration. Ensure substitute parts also meet AEC-Q101 qualifications if used in automotive contexts. Cross-reference thermal resistance values to maintain equivalent heat dissipation performance in the final assembly.
