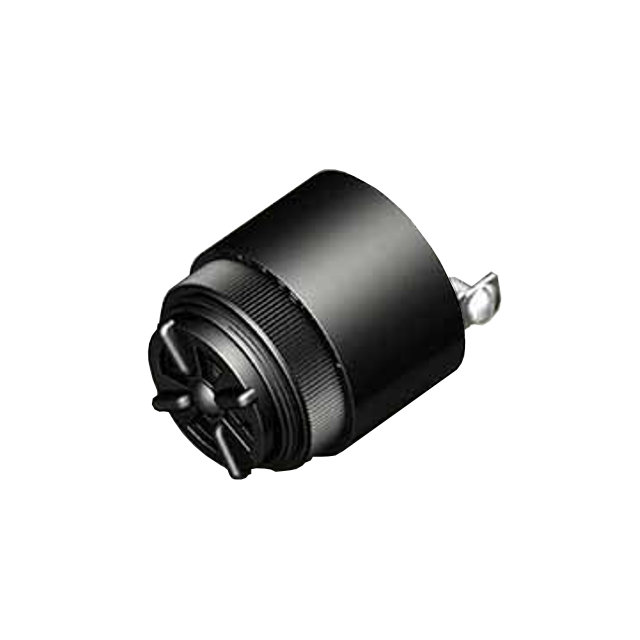

MC-V09-516-S is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Floyd Bell Inc. Its product description is BUZZER PIEZO PNL MNT. Review the specifications below when checking this part for your BOM.
Alarms, Buzzers, And Sirens specifications for MC-V09-516-S
- Description：BUZZER PIEZO PNL MNT
- Series：AudioLarm II
- Mfr：Floyd Bell Inc
- Package：Bulk
- Driver Circuitry：Indicator, Internally Driven
- Input Type：-
- Frequency：-
- Technology：Piezo
- Operating Mode：-
- Duration：-
- Sound Pressure Level (SPL)：-
- Current - Supply：-
- Port Location：Top
- Operating Temperature：-20°C ~ 65°C
- Approval Agency：UL, UR
- Ratings：-
- Ingress Protection：IP68 - Dust Tight, Waterproof
- Mounting Type：Panel Mount
- Termination：Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
- Height - Seated (Max)：-
- Voltage - Rated：-
- Voltage Range：-
- Size / Dimension：-
Alarms, Buzzers, And Sirens datasheet and documents for MC-V09-516-S
Alarms, Buzzers, And Sirens Overview
The MC-V09-516-S is a panel mount chime alarm manufactured by Floyd Bell Inc, belonging to the Audiolarm II series. It utilizes piezo technology with an internally driven indicator circuit and accepts DC input within a voltage range of 5 to 25 volts. The device operates at a frequency of 2.9 kHz and produces a sound pressure level of 70 dB at 5V measured at 61 cm. Power consumption ranges from 5 to 25 mA. It features IP68 ingress protection, ensuring it is dust tight and waterproof. The unit measures 1.410 inches in diameter and has a maximum installation height of 1.480 inches, with wire leads for connection.
Alarms, Buzzers, And Sirens Feature Summary
- Piezoelectric chime mechanism with internal driver circuitry
- IP68 rated enclosure providing dust tight and waterproof protection
- Panel mount design with top-mounted port location
Alarms, Buzzers, And Sirens Applications
- Industrial equipment status indication
- Control panel alarm signaling
- Enclosed machinery safety alerts
Alarms, Buzzers, And Sirens Procurement Notes
Verify the specific suffix against official datasheets to confirm electrical ratings and physical dimensions. Ensure the required voltage and current specifications align with the system power supply. Confirm that the IP68 rating meets environmental exposure requirements for the intended installation site.
Alarms, Buzzers, And Sirens Selection Notes
Select this component when a robust, waterproof audible indicator is required for panel mounting. The wide voltage tolerance allows flexibility in power supply design. Consider the acoustic output and frequency characteristics to ensure audibility in the target environment.
Alarms, Buzzers, And Sirens Part Context
This part belongs to the Audiolarm II series of piezo chimes. It is designed for reliable operation in harsh environments due to its sealed construction. The series offers various configurations for different mounting and electrical needs.
Alarms, Buzzers, And Sirens Replacement Considerations
Check for direct substitutes within the same manufacturer's series or comparable IP68 rated piezo chimes from other vendors. Verify pinout compatibility if using existing wiring harnesses.
