MC-V09-516-W

Alarms, Buzzers, And Sirens Overview

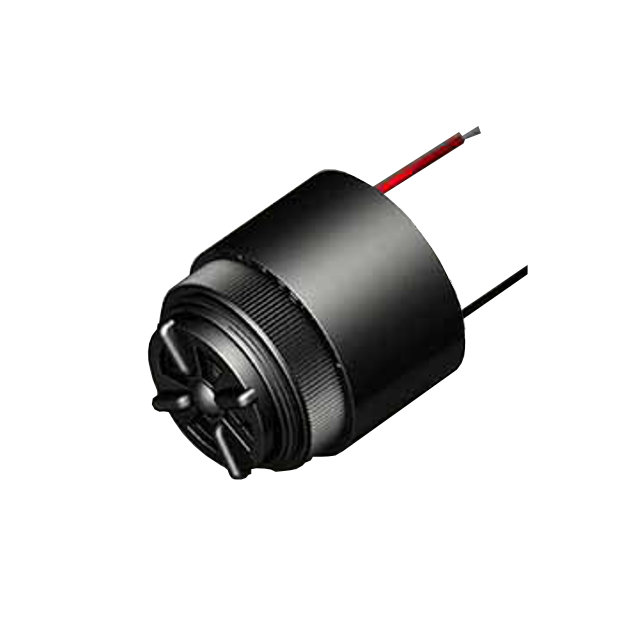

The MC-V09-516-W is a panel mount chime alarm from the AudioLarm II series by Floyd Bell Inc. It utilizes piezoelectric technology with an internally driven indicator circuit. The device operates on DC input within a voltage range of 5 to 25 volts. It produces a sound pressure level of 70 dB at 5 volts measured at 61 cm. The operating frequency is 2.9 kHz, and it draws between 5 and 25 mA of power current. Physical dimensions include a diameter of 35.81 mm and a maximum installation height of 37.59 mm. It features wire leads for termination and top port positioning. The unit is rated IP68 for dust tightness and waterproofing, with an operating temperature range of -20°C to 65°C.

Alarms, Buzzers, And Sirens Feature Summary

• IP68 rated enclosure providing dust tight and waterproof protection for harsh environments
• Internally driven piezoelectric circuitry simplifies integration without external drivers
• Panel mount design with wire lead termination for secure mechanical attachment

Alarms, Buzzers, And Sirens Applications

• Industrial machinery status indication
• Automotive equipment signaling
• Medical instrument alarms

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific part number suffix against official Floyd Bell documentation to ensure correct voltage and acoustic specifications. Confirm that the IP68 rating meets environmental requirements for the intended installation location. Check for UL or UR approval agency listings if regulatory compliance is mandatory for the target market. Ensure the wire lead length and gauge suit the system's electrical layout constraints.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a robust, self-contained audible signal is required for panel-mounted applications. The internal drive circuit eliminates the need for additional driver components, reducing board space and complexity. The wide voltage tolerance allows compatibility with various DC power systems. Consider the physical size constraints and the necessity for high ingress protection when evaluating alternatives.

Alarms, Buzzers, And Sirens Part Context

This model belongs to the AudioLarm II series, recognized as a widely used industrial alarm line. The series emphasizes durability and loud output in compact profiles. Floyd Bell designs these devices for reliable performance in demanding industrial settings. The product remains active in the manufacturer's portfolio, indicating ongoing support and availability for new designs.

Alarms, Buzzers, And Sirens Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify pinout and mounting hole patterns before considering any cross-reference models.
