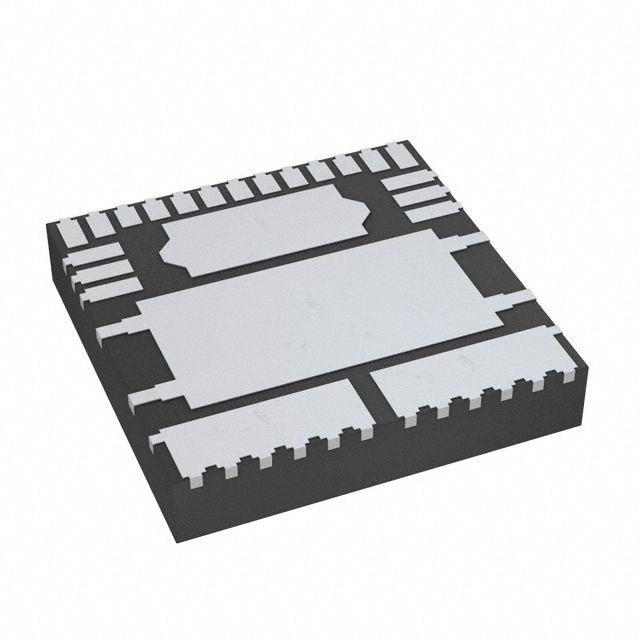

MC06XS4200BFKR2

Description：IC PWR SWITCH N-CHAN 1:1 23PQFN
Series：-
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)

SKU:d59a81323010 Category: Power Distribution Switches, Load Drivers Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 23PQFN
Series：-
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)
Switch Type：General Purpose
Number of Outputs：2
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：SPI
Voltage - Load：8V ~ 36V
Voltage - Supply (Vcc/Vdd)：3V ~ 5.5V
Current - Output (Max)：9A
Rds On (Typ)：6mOhm (Max)
Input Type：-
Features：Internal PWM, Slew Rate Controlled
Fault Protection：Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：23-PQFN (12x12)
Package / Case：23-PowerQFN
Grade：-
Qualification：-

Download product information

MC06XS4200BFKR2

Overview

The MC06XS4200BFKR2 is a dual high-side power switch manufactured by NXP Semiconductors, designed for automotive applications. It operates at a nominal voltage of 24 V and features an on-resistance of 6.0 mOhms per channel. The device integrates two independent high-side switches within a single package, providing efficient power management for loads requiring low conduction losses. It utilizes Silicon technology and is housed in a PQFN 24-pin package with exposed pad for enhanced thermal performance.

Feature Summary

Dual-channel architecture providing independent control over two high-side loads
Low on-resistance design to minimize conduction losses and heat generation
Integrated protection mechanisms for robust operation in automotive environments

Applications

Automotive lighting systems
Solenoid and relay driver circuits
Motor control applications

Procurement Notes

Verify the specific suffix BFKR2 against the official NXP datasheet to confirm the reel packaging and moisture sensitivity level. Ensure compliance with RoHS directives as indicated in component documentation. Cross-reference the full part number with authorized distributors to confirm current availability status, as supply conditions may vary.

Selection Notes

Select this component when a dual-channel solution with low on-resistance is required for 24 V automotive systems. Compare the 6.0 mOhm resistance against load requirements to ensure thermal limits are not exceeded. Consider the PQFN package size for PCB layout constraints and verify that the integrated protection features meet the system safety standards.

Part Context

This part belongs to the MCXS series of high-side switches from NXP, which are optimized for automotive use. The series includes variants with different resistance values such as MC10XS4200 and MC20XS4200. These devices are commonly used in power distribution units where reliable switching and low loss are critical for vehicle electrical architectures.
