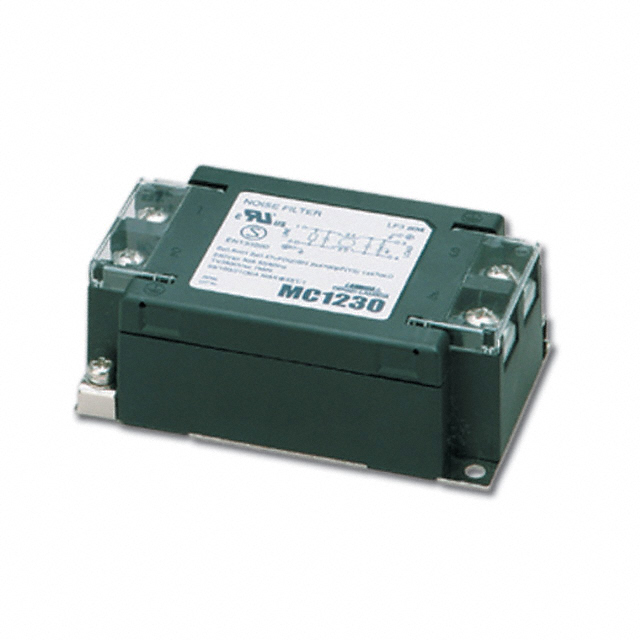

MC1230DIN is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is LINE FILTER 250VAC 30A DIN RAIL. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for MC1230DIN
- Description：LINE FILTER 250VAC 30A DIN RAIL
- Series：MC
- Mfr：TDK-Lambda
- Package：Bulk
- Filter Type：-
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：30 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：CSA, SEMKO, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：DIN Rail
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for MC1230DIN
Power Line Filter Modules Overview
The MC1230DIN is a DIN rail mounted EMC/EMI power line filter manufactured by TDK-Lambda. It is designed for industrial applications to suppress electromagnetic interference in AC power circuits. The unit supports an input voltage rating of 250VAC and handles a continuous current of 30A. It features a terminal block connection method and is constructed to meet RoHS compliance standards without lead content.
Power Line Filter Modules Feature Summary
- Provides effective EMI/EMC filtering for AC power lines
- Designed for secure DIN rail mounting installation
- Utilizes robust terminal block connections for wiring
Power Line Filter Modules Applications
- Industrial machinery power distribution
- Factory automation control panels
- Electrical cabinet noise suppression
Power Line Filter Modules Procurement Notes
Verify the specific datasheet version for the latest environmental compliance status and detailed dimensional drawings. Confirm that the 30A current rating aligns with the maximum load requirements of the protected circuit. Ensure the mounting rail type matches the DIN rail standard specified in the mechanical documentation prior to procurement.
Power Line Filter Modules Selection Notes
Select this component when high-current AC line filtering is required within a compact DIN rail enclosure. It is suitable for environments where significant electromagnetic interference must be mitigated to protect sensitive downstream electronics. Consider the physical dimensions and terminal access requirements during panel layout planning.
Power Line Filter Modules Part Context
This filter belongs to the MC series of power line filters from TDK-Lambda, which focuses on industrial-grade EMC solutions. The series offers various current ratings and mounting options to address diverse noise suppression needs across different industrial sectors and equipment types.
Power Line Filter Modules Replacement Considerations
Consult official TDK-Lambda documentation for direct cross-references. Verify compatibility with existing mounting hardware and electrical specifications before substituting with other brands.
