MC13783JVK5R2

Power Management - Specialized Overview

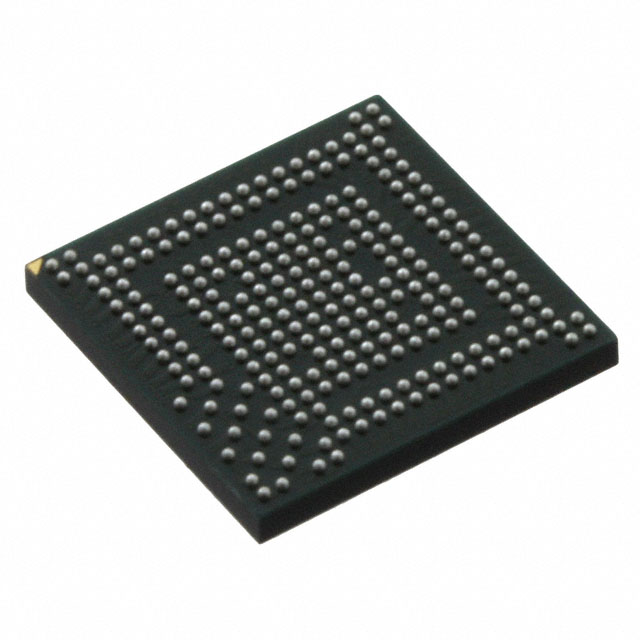

The MC13783JVK5R2 is a highly integrated power management and audio circuit device manufactured by NXP USA Inc. Designed for handheld and mobile devices, it supports GSM, GPRS, EDGE, and UMTS standards. The component operates within an ambient temperature range of –30 to +85 °C and is housed in a 10 × 10 mm MAPBGA-247 plastic package containing 247 balls. It integrates multiple power rails and high-performance audio functions suitable for smartphones and UMTS handsets.

Power Management - Specialized Feature Summary

• Integrates power management and audio circuitry into a single highly compact component
• Supports multiple cellular communication standards including GSM, GPRS, EDGE, and UMTS
• Provides high-performance audio processing capabilities tailored for smartphone applications

Power Management - Specialized Applications

• GSM handsets
• UMTS mobile phones
• Smartphones requiring integrated power and audio management
• Portable battery-powered devices

Power Management - Specialized Procurement Notes

Verify the specific suffix JVK5R2 against official NXP documentation to confirm the exact operating temperature range and package variant. Confirm RoHS compliance status as indicated in the datasheet revision. Note that product status may be obsolete; check current availability through authorized distributors only.

Power Management - Specialized Selection Notes

Select this component for designs requiring a consolidated solution for both power regulation and audio processing in mobile terminals. Ensure the PCB layout accommodates the 247-ball MAPBGA footprint. Verify thermal dissipation requirements for the 10x10mm package under maximum load conditions specified in the electrical characteristics section.

Power Management - Specialized Part Context

This part belongs to the MC13783 series of power management ICs from NXP (formerly Freescale). The series is specifically engineered for portable communication devices. The MC13783 family addresses the need for miniaturization in mobile handsets by combining PMIC and audio codec functionalities, reducing board space and component count compared to discrete solutions.

Power Management - Specialized Replacement Considerations

Consult NXP official documentation for direct pin-to-pin replacements or functional equivalents within the MC13783 family. No public substitute part numbers are confirmed in the provided source material.
