MC13892BJVLR2

Power Management - Specialized Overview

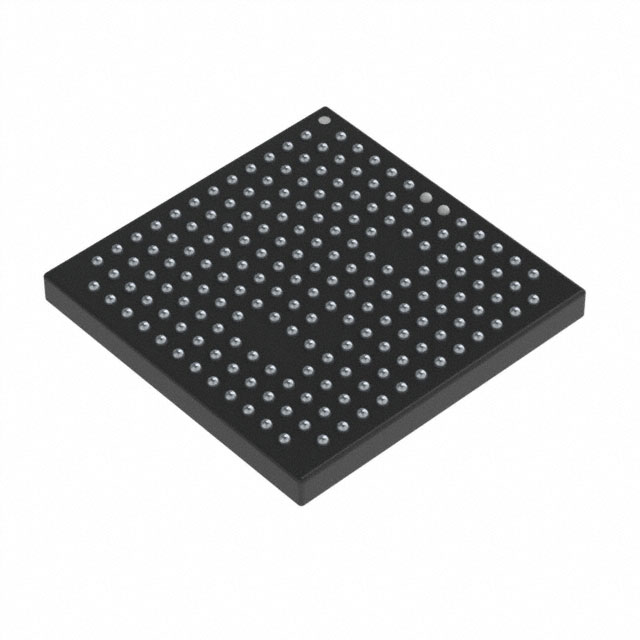

The MC13892BJVLR2 is a Power Management Integrated Circuit (PMIC) designed for i.MX51, i.MX37, i.MX35, and i.MX27 processors. It features an 186-pin MAPBGA package measuring 12x12 mm with a 0.80 mm pitch. The device operates within a temperature range of -40°C to 85°C and supports input voltages from 5V to 28V. It integrates buck and boost converters for comprehensive power management in mobile applications.

Power Management - Specialized Feature Summary

• Integrated PMU solution for Freescale/NXP i.MX application processors
• Supports battery management and LED driver functions
• Includes buck and boost converter capabilities

Power Management - Specialized Applications

• Battery management systems
• Display LED drivers
• Handheld and mobile devices
• General power supply management

Power Management - Specialized Procurement Notes

Verify the exact suffix 'JVLR2' against official NXP documentation to confirm pinout and electrical specifications. Confirm RoHS compliance status as indicated in component databases. Check current availability status as some sources list this part as obsolete or out of stock. Ensure the 186-pin BGA footprint matches your PCB design requirements.

Power Management - Specialized Selection Notes

Select this component specifically for designs utilizing i.MX35, i.MX51, i.MX37, or i.MX27 processor families. Consider the 186-pin MAPBGA package size constraints during layout. Evaluate thermal performance given the 85°C maximum operating temperature limit. Verify that the integrated regulator outputs meet the specific voltage and current requirements of the target application.

Power Management - Specialized Part Context

This part belongs to the MC13892 family of Power Management ICs developed by NXP (formerly Freescale). These components are specialized for embedded mobile applications requiring efficient power distribution for complex system-on-chip solutions. The MC13892 series consolidates multiple power rails into a single package to reduce board space.

Power Management - Specialized Replacement Considerations

Check for direct substitutes within the MC13892 family such as MC13892CJVLR2. Verify compatibility with i.MX processor variants before substitution. Consult NXP official documentation for any updated revisions or end-of-life notices affecting this specific part number.
