MC13892DJVKR2

Power Management - Specialized Overview

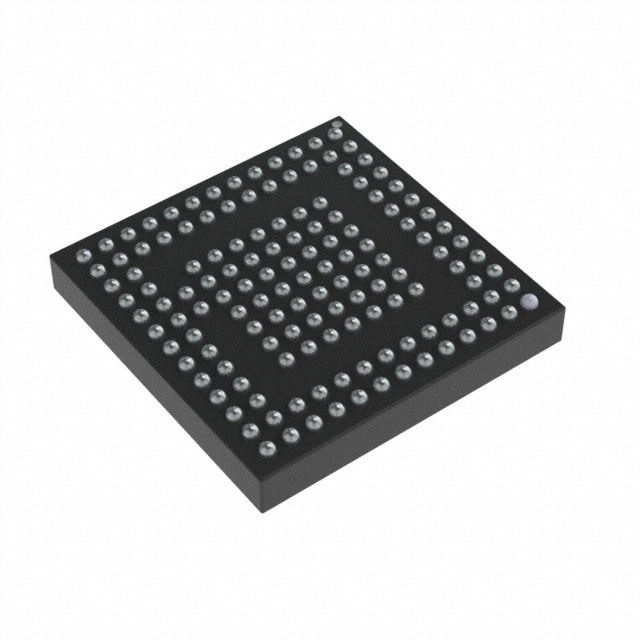

The MC13892DJVKR2 is a specialized Power Management Integrated Circuit (PMIC) designed for i.MX51, i.MX37, i.MX3, and i.MX27 application processors. It integrates four buck converters and twelve low-dropout regulators (LDOs). The device operates within a supply voltage range of 1.1 V to 1.3 V and supports an output current of 30 mA. It functions in temperatures from -40°C to +85°C and utilizes a 139-pin BGA package.

Power Management - Specialized Feature Summary

• Integrates multiple power rails including four buck converters and twelve LDOs for comprehensive system power management.
• Optimized specifically for NXP i.MX series application processors to ensure stable operation in mobile devices.
• Supports secure connections and complies with environmental standards such as RoHS and REACH directives.

Power Management - Specialized Applications

• Personal media players
• Navigation devices
• Handheld mobile devices

Power Management - Specialized Procurement Notes

Verify the specific suffix 'DJVKR2' against official NXP documentation to confirm pinout and functional compatibility. Check for end-of-life status or obsolescence notices, as availability may be limited. Ensure the supplier provides valid traceability and authenticity guarantees for this specialized PMIC component.

Power Management - Specialized Selection Notes

Select this component only when interfacing with compatible i.MX processors like the i.MX51 or i.MX37. Confirm that the required number of buck and LDO outputs matches the system design. Evaluate thermal performance requirements given the BGA package and operating temperature range.

Power Management - Specialized Part Context

This part belongs to the MC13892 family of PMICs developed by NXP Semiconductors. It serves as a critical power management solution for embedded systems requiring efficient power distribution for complex application processors in portable electronics.

Power Management - Specialized Replacement Considerations

Consult NXP datasheets for direct substitutes within the MC13892 series. Verify pin-to-pin compatibility and electrical specifications before replacing. Generic alternatives are not recommended due to specific processor integration requirements.

Power Management - Specialized FAQ

Which application processors is the MC13892DJVKR2 compatible with?

It is designed for i.MX51, i.MX37, i.MX3, and i.MX27 application processors.

What is the operating temperature range for this PMIC?

The device operates between -40°C and +85°C.
