MC13892VK

Power Management - Specialized Overview

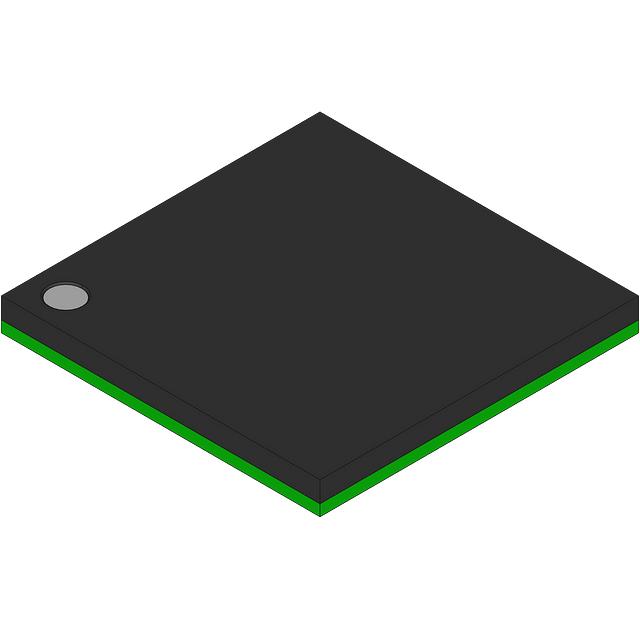

The MC13892VK is a SMARTMOS Power Management Integrated Circuit (PMIC) designed for i.MX51, i.MX37, i.MX35, and i.MX27 application processors. It integrates four buck converters and twelve low-dropout regulators (LDOs). The device operates within a supply voltage range of 1.1 V to 1.3 V and supports an operating temperature range from -40°C to +85°C. It is housed in a BGA-139 package with SMD/SMT mounting style.

Power Management - Specialized Feature Summary

• Integrates multiple power conversion stages including buck converters and LDOs for comprehensive system power management.
• Includes a battery charger system supporting both wall charging and USB charging interfaces.
• Features a 10-bit ADC for monitoring battery status and other input signals.

Power Management - Specialized Applications

• i.MX51 application processor systems
• i.MX37 application processor systems
• i.MX35 application processor systems
• i.MX27 application processor systems

Power Management - Specialized Procurement Notes

Verify component authenticity through authorized NXP Semiconductors channels or certified distributors. Confirm the specific suffix indicates the correct package variant. Check for moisture sensitivity handling requirements during storage and assembly. Ensure compatibility with the target i.MX processor family before integration into the design.

Power Management - Specialized Selection Notes

Select this PMIC when designing systems based on Freescale i.MX27, i.MX35, i.MX37, or i.MX51 processors. It provides integrated power sequencing and regulation suitable for portable devices such as smartphones, netbooks, and personal media players. Evaluate thermal performance within the specified -40°C to +85°C operating range.

Power Management - Specialized Part Context

This component belongs to the MC13892 family of power management ICs developed by Freescale Semiconductor, now part of NXP Semiconductors. Variants such as MC13892BJVK and MC13892VL share similar functionalities but may differ in package type or specific electrical characteristics. The VK suffix denotes a specific configuration within this product line.

Power Management - Specialized Replacement Considerations

Compatible substitutes include MC13892BJVK and MC13892VL. Verify pin-to-pin compatibility and electrical specifications against the original datasheet before substitution. Ensure the alternative variant supports the same i.MX processor families and meets the required operating temperature ranges.
