MC1496PG

Overview

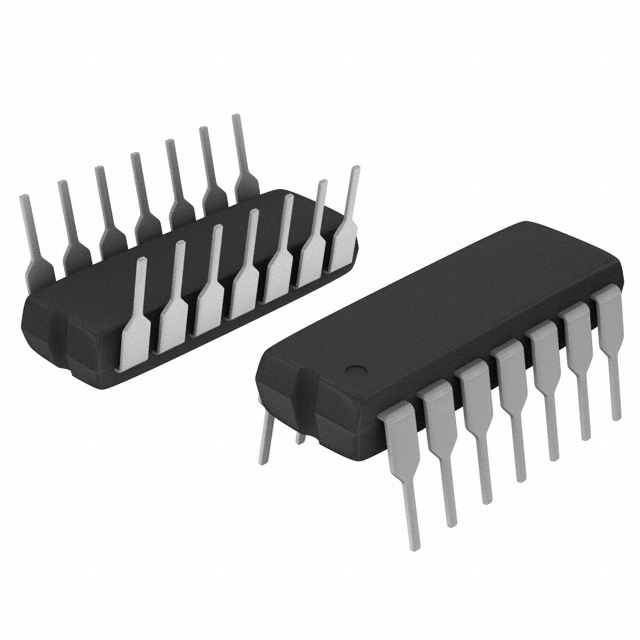

The MC1496PG is a balanced modulator and demodulator integrated circuit manufactured by onsemi. It operates within a frequency range of 80 MHz to 300 MHz, supporting FM RF applications. The device utilizes silicon technology and is housed in a 14-pin PDIP package for through-hole mounting. Key electrical specifications include a maximum supply voltage of 12 V and an operating supply current of 5 mA. The component functions effectively across a temperature range from -40°C to +125°C, ensuring reliability in diverse environmental conditions.

Feature Summary

• Implements balanced modulation and demodulation architecture for precise signal processing
• Designed for scenarios where output voltage represents the product of input signal and switching carrier function
• Supports surface-mount and through-hole integration via specific package variants

Applications

• FM radio frequency modulation circuits
• Communication systems requiring balanced mixing
• Signal processing equipment utilizing carrier switching functions

Procurement Notes

Verify part authenticity against official onsemi documentation due to obsolete status. Confirm package type compatibility with existing PCB footprints. Check RoHS compliance status as historical data indicates non-compliance for some variants. Ensure thermal management aligns with specified operating temperature ranges during installation.

Selection Notes

Select this component when balanced modulation is required for frequencies up to 300 MHz. Consider the 14-pin PDIP package for prototyping or legacy board designs. Evaluate power consumption requirements against the 5 mA supply current specification. Verify that the operating temperature range meets the environmental demands of the target application.

Part Context

The MC1496 series belongs to onsemi's lineup of analog signal processing components. This specific model focuses on high-frequency modulation tasks. It serves as a foundational element in communication hardware design. The device distinguishes itself through its ability to handle carrier signals efficiently.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
