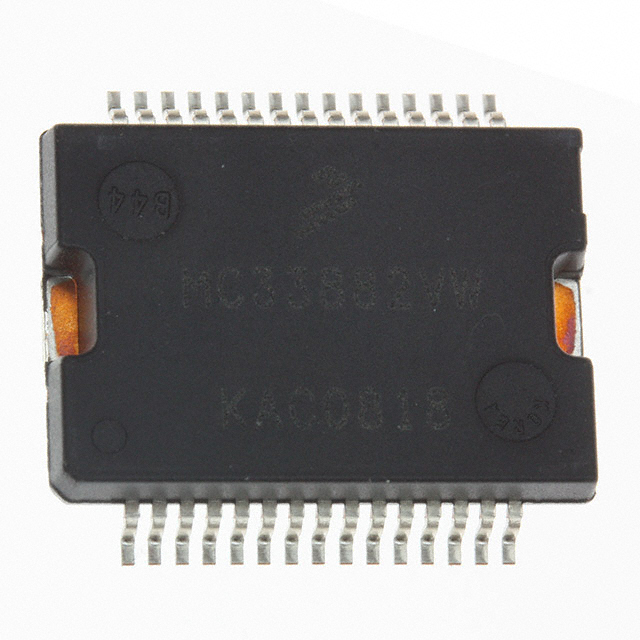

MC33882PVW
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC PWR SWITCH N-CHAN 1:1 30HSOP
- Series：-
- Mfr：NXP USA Inc.
- Package：Tube
- Switch Type：General Purpose
- Number of Outputs：6
- Ratio - Input:Output：1:01
- Output Configuration：Low Side
- Output Type：N-Channel
- Interface：SPI, Parallel
- Voltage - Load：8V ~ 25V
- Voltage - Supply (Vcc/Vdd)：4.5V ~ 5.5V
- Current - Output (Max)：-
- Rds On (Typ)：400mOhm
- Input Type：-
- Features：-
- Fault Protection：Current Limiting (Fixed), Open Load Detect, Over Voltage
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Supplier Device Package：30-HSOP
- Package / Case：30-BSOP (0.433", 11.00mm Width) Exposed Pad
- Grade：-
- Qualification：-
Download product information
Overview
The MC33882PVW is a six-output low-side power switch manufactured by NXP USA Inc. It utilizes SMARTMOS technology to provide load control switching to ground for resistive and inductive loads. The device features an N-channel output configuration with a typical on-resistance of 400 milliohms. It operates within a supply voltage range of 4.5V to 5.5V and supports load voltages from 8V to 25V. Control interfaces include SPI and parallel inputs. Integrated protection mechanisms cover fixed current limiting, open load detection, overvoltage, overtemperature, and undervoltage conditions.
Feature Summary
- Provides multi-channel open-drain MOSFET output switching using SMARTMOS technology for low power dissipation.
- Integrates comprehensive load and IC protection including overcurrent, overtemperature, and over/under voltage safeguards.
- Supports flexible control via Serial Peripheral Interface (SPI) and parallel input modes.
Applications
- Motorcycle Engine Control Unit (ECU)
- Small Engine Control
- Automotive Diesel Engine Management
Procurement Notes
Verify the specific suffix PVW against the official datasheet to confirm package type and tape-and-reel specifications. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process. Check component lifecycle status as availability may be limited. Ensure interface compatibility with your host controller before integration.
Selection Notes
Select this component when designing systems requiring multiple low-side switches with integrated diagnostics. The combination of SPI and parallel control offers flexibility for different system architectures. Evaluate the thermal performance given the operating temperature range and power dissipation characteristics. Ensure the load voltage and current requirements fall within the specified operational limits for reliable long-term performance.
Part Context
This part belongs to NXP’s portfolio of low-side switches designed for automotive applications. It complements other engine control ICs like the MC33810 and MC33812. The device is part of a family offering various channel counts and control interfaces, such as the MC33996 and MC33999, tailored for complex power distribution needs in modern vehicle electronics.
Replacement Considerations
Consult the official NXP product selection guide for direct pin-compatible or functionally equivalent alternatives within the MC3388x series. Verify that any substitute maintains the same SMARTMOS technology characteristics and protection feature set. Cross-reference interface protocols to ensure seamless integration without hardware modifications.
