MC33FS6600M0ESR2

Power Management - Specialized Overview

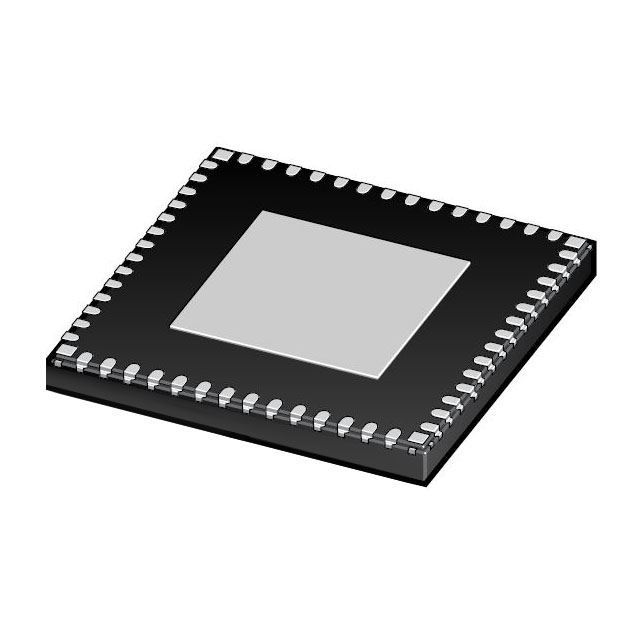

The MC33FS6600M0ESR2 is a safety System Basis Chip (SBC) from NXP Semiconductors, designed for automotive applications. It operates within an input voltage range of 2.7 V to 60 V and supports output currents up to 10 A. The device features adjustable output voltages ranging from 800 mV to 5.74 V. It is housed in a HVQFN-56 package with dimensions of 8 mm x 8 mm x 0.85 mm. The component is qualified under AEC-Q100 standards and functions reliably between -40°C and +85°C.

Power Management - Specialized Feature Summary

• Integrated safety power management IC architecture
• Designed specifically for S32S2 microcontroller support
• Automotive-grade reliability certification

Power Management - Specialized Applications

• S32S2 MCU system integration
• Automotive domain controllers
• Safety-critical power distribution networks

Power Management - Specialized Procurement Notes

Verify the specific suffix 'R2' indicates tape-and-reel packaging versus the tray-packaged 'ES' variant. Confirm AEC-Q100 qualification status matches project requirements. Ensure compatibility with the target S32S2 MCU revision. Check moisture sensitivity levels for storage and reflow constraints. Validate thermal performance within the specified operating temperature range.

Power Management - Specialized Selection Notes

Select this component when integrating NXP S32S2 microcontrollers requiring integrated safety and power management. Consider the 60 V input tolerance for robust automotive bus conditions. Evaluate the 10 A output capability against load requirements. Verify the HVQFN-56 package fits the PCB layout constraints. Ensure the -40°C to +85°C range meets environmental specifications.

Power Management - Specialized Part Context

This part belongs to the FS6600 series of safety SBCs from NXP Semiconductors. It complements other variants like the MC33FS6600M0ES by offering reel packaging options. The series targets advanced driver assistance systems and central gateway applications requiring high reliability and integrated protection features for modern automotive electronics.

Power Management - Specialized Replacement Considerations

The MC33FS6600M0ES is a direct pin-compatible alternative differing primarily in packaging format. Verify that the tray-packaged version meets all electrical and thermal requirements if switching from the reel variant.
