MC33FS8430G1KS

Power Management - Specialized Overview

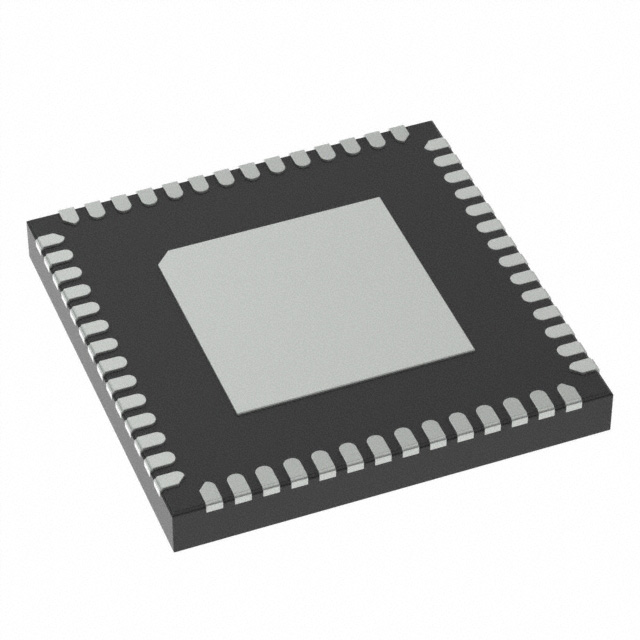

The MC33FS8430G1KS is a safety power management IC from NXP Semiconductors, designed for automotive applications. It operates within an input voltage range of 5.1 V to 60 V and supports a maximum input current of 1.5 A. The device functions at operating supply voltages between 2.7 V and 40 V with a typical operating supply current of 15 mA. It is qualified under AEC-Q100 standards and housed in an HVQFN-56 package. The component is rated for temperatures ranging from -40°C to +125°C.

Power Management - Specialized Feature Summary

• Fail-safe system architecture for automotive power management
• AEC-Q100 qualified for automotive reliability
• Wide input voltage tolerance up to 60 V

Power Management - Specialized Applications

• Radar systems
• Vision systems
• ADAS Domain Controller

Power Management - Specialized Procurement Notes

Verify the specific suffix G1KS against official NXP documentation to confirm pinout and functional compatibility with your design requirements. Ensure that the HVQFN-56 package dimensions align with your PCB layout constraints. Confirm moisture sensitivity level handling procedures are followed during assembly to prevent damage. Cross-reference the datasheet revision date to ensure all electrical characteristics meet current project specifications.

Power Management - Specialized Selection Notes

Select this component when designing automotive radar or vision systems requiring robust power management. The wide input voltage range accommodates various automotive battery conditions. The AEC-Q100 qualification ensures suitability for harsh automotive environments. Consider the HVQFN-56 package size for space-constrained domain controller designs.

Power Management - Specialized Part Context

This part belongs to the FS8400 series of safety power management ICs from NXP Semiconductors. It is specifically engineered for high-reliability automotive applications such as ADAS domain controllers. The series provides integrated fail-safe mechanisms essential for safety-critical systems in modern vehicles.

Power Management - Specialized Replacement Considerations

Check NXP documentation for form, fit, and function compatible alternatives within the FS8400 family, such as MC33FS8430G1ES or MC33FS8430G2ES, if availability issues arise.
