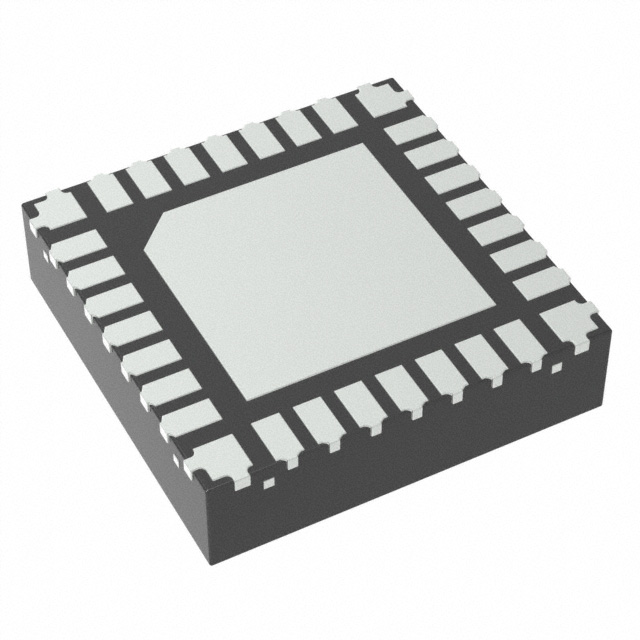

MC33HB2000FK

Overview

The MC33HB2000FK is a high-performance, single-chip H-bridge motor driver designed for automotive and industrial applications. It integrates four low Rds(on) MOSFETs, gate drivers, charge pump, and comprehensive protection circuits. The device supports input voltages from 5V to 28V with peak tolerance up to 40V. Key features include SPI-based programmability for current limits (5.4A, 7.0A, 8.8A, 10.7A) and slew rates (0.25 V/μs to >16 V/μs). It offers extensive diagnostics via SPI, including short-circuit, open-load, overtemperature, and undervoltage detection.

Feature Summary

• Integrated H-bridge with built-in MOSFETs, gate drivers, and protection logic
• SPI interface for dynamic configuration of current limits and slew rates
• Comprehensive diagnostic capabilities including fault detection and status reporting
• Wide operating voltage range suitable for 12V and 24V automotive systems

Applications

• Automotive electric power steering systems
• Industrial valve actuators
• Robotics joint control
• Electric vehicle auxiliary pumps

Procurement Notes

Verify the specific suffix 'FK' against official NXP documentation to confirm package type and temperature grade. Ensure compatibility with your system's voltage levels and communication protocols. Check for any recent product change notices or end-of-life announcements directly from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when a highly integrated solution is required for driving DC brushed motors or inductive loads. It is suitable for designs needing precise current control and advanced diagnostics without external discrete components. Consider the thermal performance and PCB layout requirements associated with its integrated power stage.

Part Context

The MC33HB2000 series belongs to NXP's portfolio of smart power devices for automotive and industrial markets. It is part of a family of H-bridge drivers offering varying levels of integration and current handling capabilities. This specific model targets applications requiring robust protection and programmable parameters via digital interfaces.

Replacement Considerations

Consult official NXP substitution guides for verified alternatives. Cross-reference pinouts, electrical characteristics, and package dimensions with potential replacement parts to ensure mechanical and functional compatibility in existing designs.
