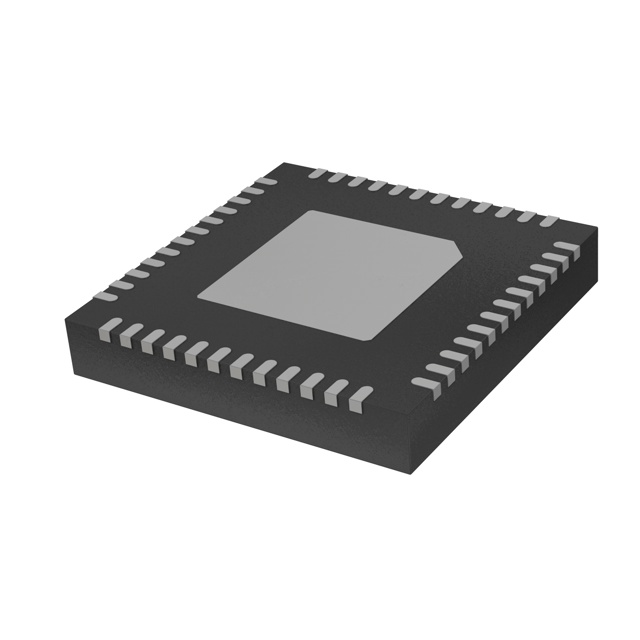

MC33PF3000A3ES

Power Management - Specialized Overview

The MC33PF3000A3ES is a specialized Power Management IC (PMIC) from the PF3000 series, designed for NXP i.MX7 and i.MX6 application processors. It features four buck converters, six LDOs, and one boost converter. Input voltage ranges from 2.8 V to 5.5 V. Output voltages span 700 mV to 5.15 V. The device supports automotive applications with an operating temperature range of -40°C to +105°C. It utilizes SMARTMOS technology and includes RTC power and coin-cell charging capabilities.

Power Management - Specialized Feature Summary

• Configurable architecture supporting multiple output current ratings
• Integrated real-time clock supply and coin-cell battery charger
• SMARTMOS technology implementation

Power Management - Specialized Applications

• NXP i.MX7 application processor systems
• NXP i.MX6SL/SX/UL application processor systems
• Automotive embedded control units

Power Management - Specialized Procurement Notes

Verify the specific suffix 'A3ES' against official NXP documentation to confirm pre-programmed configuration and tray packaging status. Ensure compatibility with target i.MX processor power sequencing requirements before integration. Check for moisture sensitivity level handling instructions during assembly.

Power Management - Specialized Selection Notes

Select this component when designing systems based on NXP i.MX7 or i.MX6 family processors requiring integrated power management. Consider its automotive qualification and wide input voltage range suitable for vehicle electrical environments. Evaluate if the fixed combination of four bucks, six LDOs, and one boost meets system rail requirements.

Power Management - Specialized Part Context

This part belongs to the PF3000 family of PMICs developed by NXP Semiconductors. These devices are engineered specifically to simplify power design for complex application processors. The family offers configurable outputs to adapt to various processor core and peripheral voltage needs.

Power Management - Specialized Replacement Considerations

MC33PF3000A3ESR2 is a tape-and-reel variant of the same functional device.
