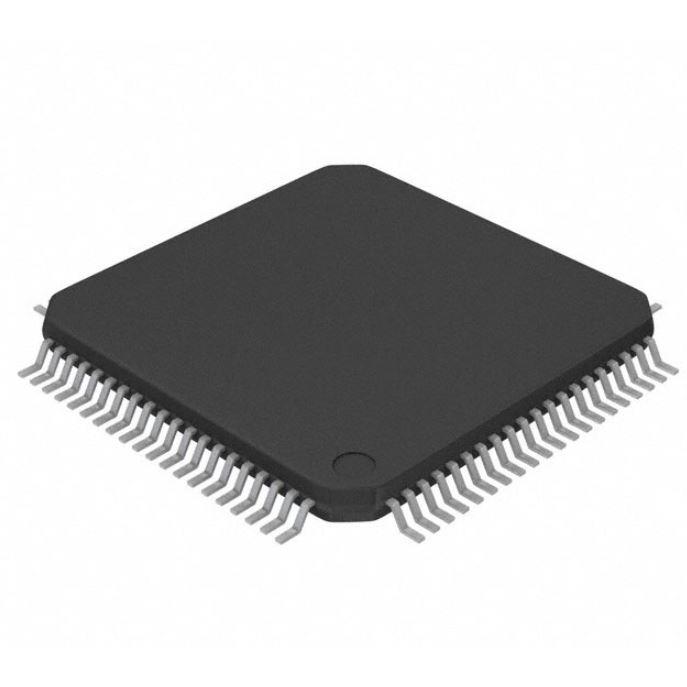

MC33PT2000AF

Power Management - Specialized Overview

The MC33PT2000AF is a programmable solenoid controller designed for direct injection systems. It integrates high-side and low-side pre-drivers capable of handling battery voltages up to 72 V. The device supports PWM capabilities up to 100 KHz and includes four selectable slew rates for all pre-drivers. It features twelve optional predefined VDS/VSRC monitoring thresholds and an integrated 1.0 MHz backup clock. The IC provides injection end detection and encryption functions for microcode protection, facilitating precise control of fuel injectors and pumps.

Power Management - Specialized Feature Summary

• Programmable electromagnetic pre-driver circuit with high-side and low-side output stages
• Integrated SPI communication interface and IO control for system integration
• Built-in diagnostic capabilities including injection end detection and fault monitoring
• Supports external MOSFET control for managing multiple injectors and fuel pumps

Power Management - Specialized Applications

• Direct injection solenoid control for 4-cylinder engines
• Direct injection solenoid control for 6-cylinder engines
• High-pressure fuel pump driver circuits
• Automotive engine management systems requiring programmable valve actuation

Power Management - Specialized Procurement Notes

Verify the specific suffix 'AF' against official NXP documentation to confirm package type and temperature grade. Ensure compatibility with the PT2000 evaluation kit if prototyping. Confirm that the component meets the required automotive qualification standards for your specific application environment before finalizing procurement.

Power Management - Specialized Selection Notes

Select this component when designing systems requiring independent programmable waveforms for multiple solenoids. It is suitable for applications needing peak-and-hold current control for valves. Consider the integrated diagnostics and backup clock if system reliability and fault detection are critical requirements for the engine control unit design.

Power Management - Specialized Part Context

The MC33PT2000 belongs to the PT2000 family of programmable gate drivers developed by NXP for powertrain applications. It is specifically engineered for gasoline direct injection (GDI) systems. The device replaces discrete driver solutions by integrating control logic, power stages, and protection features into a single chip, simplifying the hardware design for multi-cylinder engines.

Power Management - Specialized Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
