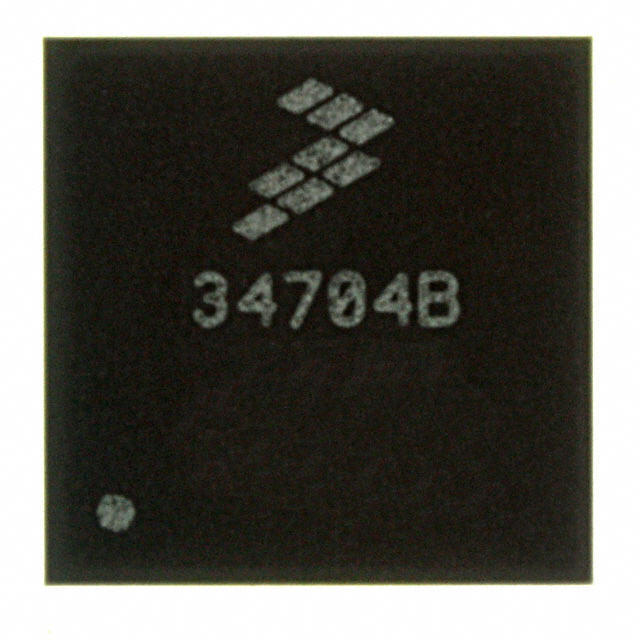

MC34704AEP

Power Management - Specialized Overview

The MC34704AEP is a multi-channel power management IC (PMIC) designed for multimedia application microprocessors. It provides eight independent DC/DC switch regulator outputs from a single input voltage range of 2.7 V to 5.5 V. The device supports dynamic voltage scaling across all regulators and includes built-in compensation for specific channels. It features I²C programmability, output undervoltage/overvoltage detection, overcurrent protection, and thermal shutdown. The component operates with a maximum shutdown current of 5 µA and supports switching frequencies up to 2 MHz.

Power Management - Specialized Feature Summary

• Integrates eight independent DC/DC switch regulators with ±2% output accuracy
• Supports dynamic voltage scaling on all regulator channels
• Includes comprehensive protection mechanisms such as overcurrent, short circuit, and thermal limiting
• Features true disconnect capability for boost and buck-boost regulators

Power Management - Specialized Applications

• Portable devices powered by lithium-ion or lithium-polymer batteries
• USB-powered portable electronic equipment
• i.MX35, i.MX37, and i.MX51 microcontroller systems

Power Management - Specialized Procurement Notes

Verify the exact suffix configuration against official NXP documentation to ensure correct package type and temperature rating. Confirm availability status as distribution channels may list obsolete or end-of-life inventory. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability before procurement.

Power Management - Specialized Selection Notes

Select this PMIC when designing systems requiring multiple regulated voltages from a single input source. Ensure the application supports the QFN-56 package footprint and SMD mounting requirements. Verify that the target microprocessor, such as the i.MX series, is compatible with the device's I²C interface and voltage scaling protocols.

Power Management - Specialized Part Context

The MC34704AEP belongs to the MC34704 family of multi-channel power management integrated circuits manufactured by NXP Semiconductors. This family is engineered to provide compact, high-efficiency power solutions for complex multimedia processors. The AEP suffix typically denotes a specific tape-and-reel packaging variant within the broader product line.

Power Management - Specialized Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult NXP technical support for validated alternatives if this component is discontinued.
