MC34708VMR2

Power Management - Specialized Overview

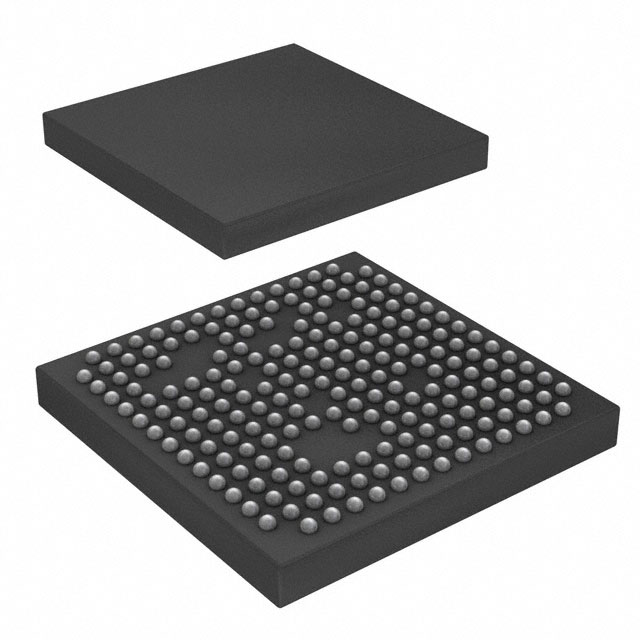

The MC34708VMR2 is a Power Management Integrated Circuit (PMIC) designed for i.MX50 and i.MX53 processors. It utilizes SMARTMOS technology to provide six multi-mode buck regulators, one boost regulator, and eight LDOs. The device includes a 10-bit ADC, real-time clock with coin cell backup, and SPI/I²C interfaces. It operates within a temperature range of -40°C to +85°C in a MAPBGA-206 package.

Power Management - Specialized Feature Summary

• Six multi-mode buck regulators for processor core and peripheral power
• Boost regulator supporting USB OTG functionality
• Integrated 10-bit ADC for battery and input monitoring
• Real-time clock with crystal oscillator and coin cell backup

Power Management - Specialized Applications

• Power supply for i.MX50 family processors
• Power supply for i.MX53 family processors
• Embedded applications requiring integrated power management

Power Management - Specialized Procurement Notes

Verify the specific suffix 'R2' against the manufacturer's official documentation to confirm tape-and-reel packaging specifications. Ensure compatibility with the target PCB footprint for the MAPBGA-206 package. Confirm that the component meets the required RoHS compliance standards for the intended deployment environment.

Power Management - Specialized Selection Notes

Select this PMIC when designing systems based on the i.MX50 or i.MX53 processor families. It is suitable for applications requiring multiple regulated voltage rails from a single IC. Consider thermal budget optimization features if high current loads are present. Verify interface requirements for SPI or I²C control before finalizing the design.

Power Management - Specialized Part Context

This component belongs to the NXP PMIC solutions line, specifically engineered for Freescale (now NXP) i.MX application processors. It consolidates power management functions into a single chip to reduce board space and complexity. The device supports dynamic voltage scaling and hardware-programmable power-up sequences for efficient system operation.

Power Management - Specialized Replacement Considerations

The MC34709 is a related PMIC variant designed for similar i.MX processor families. Verify pinout compatibility and feature set differences before substitution. Check for any changes in regulatory support or package dimensions.
