MC50000IOSE8G

Overview

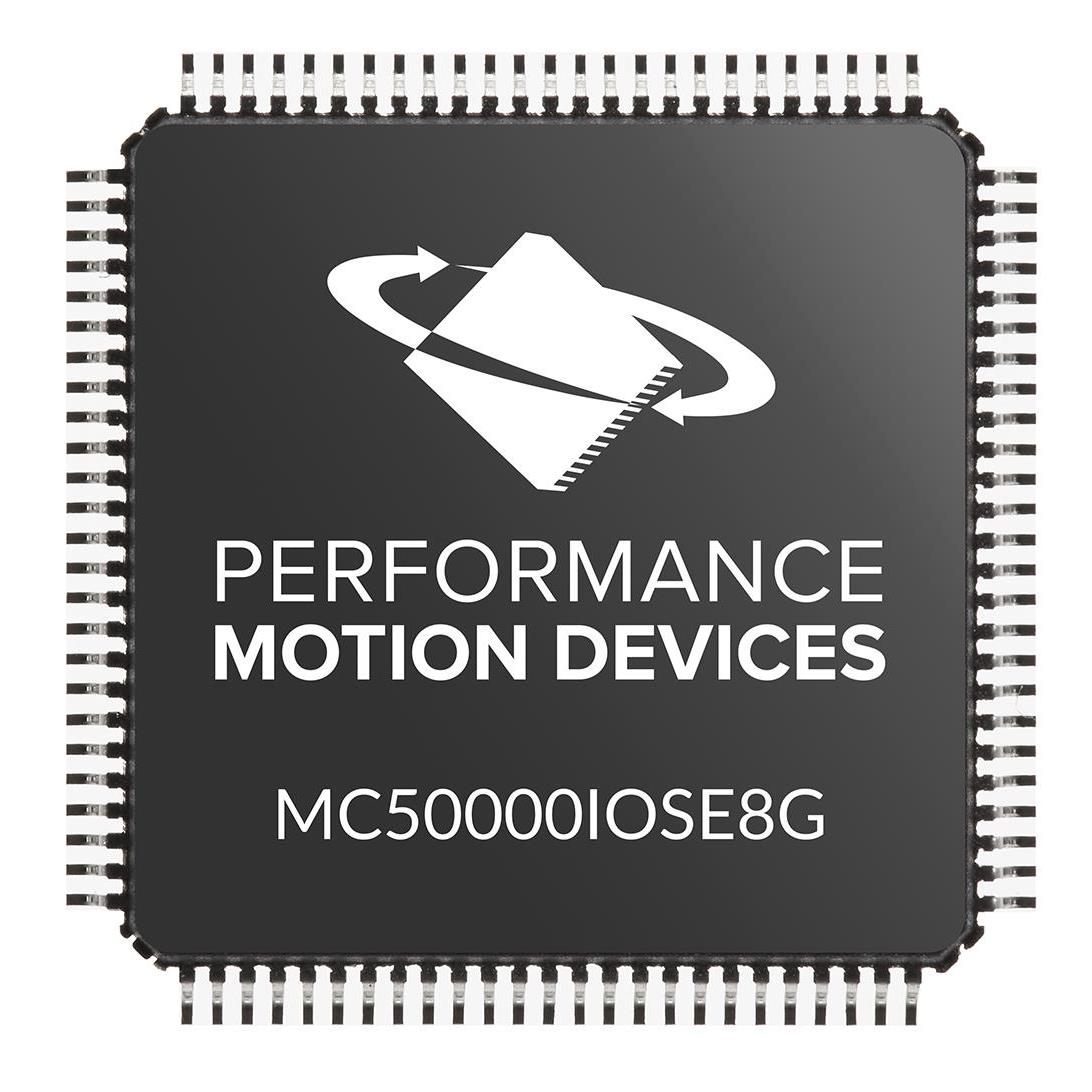

The MC50000IOSE8G is an I/O expander integrated circuit designed for the Magellan 2-IC motion control chipset. It operates within a supply voltage range of 3 V to 3.6 V, with a maximum power supply current of 24 mA and an output current capability of 4 mA. The device supports parallel interfaces and features high-side output configurations. It is housed in a 100-LQFP (14x14) surface-mount package. The component functions as part of a bipolar or unipolar motor driver system, supporting CMOS technology. It is rated for operation between -40°C and +85°C, with a junction temperature limit up to 150°C.

Feature Summary

• Serves as an I/O expander specifically engineered for integration with the Magellan 2-IC motion control architecture.
• Provides high-side output configuration capabilities for interfacing with motor drive stages.
• Supports parallel interface communication protocols for system connectivity.
• Designed for use in bipolar and unipolar motor driver applications.

Applications

• DC motor controller systems
• Brushless DC (BLDC) motor drives
• Two-phase motor control circuits

Procurement Notes

Verify that the specific ordering suffix matches the required package variant and temperature grade. Confirm RoHS compliance status against the latest manufacturer documentation before finalizing procurement. Ensure ESD handling procedures are followed due to the sensitivity of the CMOS interface. Cross-reference the datasheet revision date to guarantee compatibility with existing design specifications.

Selection Notes

Select this component when designing systems requiring dedicated I/O expansion for the Magellan motion control family. Ensure the application voltage remains within the 3 V to 3.6 V operational window. Verify that the thermal management strategy accommodates the specified junction temperature limits. Confirm that the 100-LQFP footprint aligns with the PCB layout constraints and assembly capabilities.

Part Context

This IC belongs to the Magellan series of motion control components manufactured by Performance Motion Devices, Inc. It complements other controllers in the ecosystem by managing input and output signals for motor drive stages. The device is distinct from the Juno series velocity and torque controllers, focusing specifically on I/O functionality rather than direct motor commutation logic.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided documentation. Designers should consult the manufacturer directly for potential obsolescence management or alternative component recommendations.
